Ubiquiti UDB-Pro 5KM PTP Device Bridge Pro
Paglalarawan
Long-Range Point-to-Point Bridge for Seamless Outdoor Uplinks

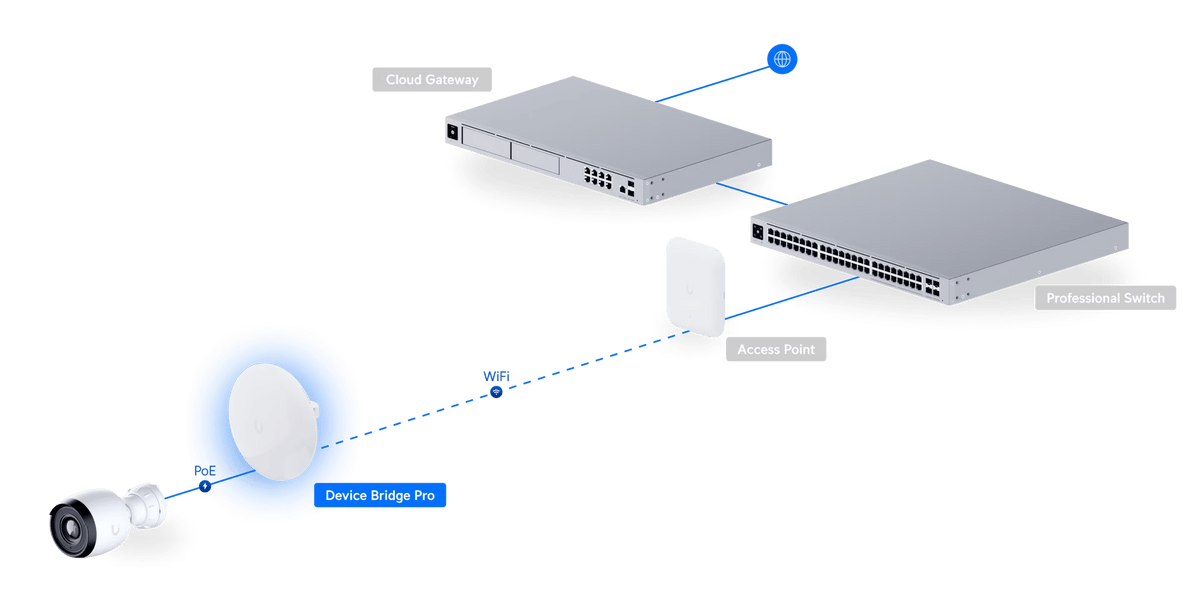

The Ubiquiti UDB-Pro Device Bridge Pro is a high-performance 5 GHz point-to-point (PTP) wireless bridge designed to deliver fast, stable, and secure long-distance connectivity over distances exceeding 5 km (3.1 miles). Featuring internal 19 dBi antennas, PoE passthrough, and UniFi Controller integration, this compact unit is built for remote site uplinks, outdoor wireless extensions, and cost-effective broadband bridging.
Note: The UDB-Pro must be managed via a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.
Highlights
-
Long-Range 5GHz Bridge: Seamless PTP connection up to 5+ km (3.1 mi)
-
High-Speed WiFi 5: Up to 867 Mbps over 80 MHz channel width
-
PoE Output Support: PoE+ input required to power downstream devices
-
19 dBi Internal Antenna: Integrated directional coverage with compact design
-
Weatherproof & Durable: Built to withstand outdoor elements with IPX6 rating
-

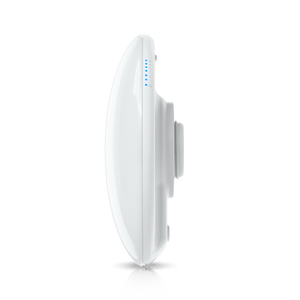

LED Signal Indicators: Visual feedback for quick and precise alignment
Key Features
Strong and Stable Wireless Uplinks
-
2x2 MIMO on 5 GHz: Delivers a high-throughput wireless link ideal for bridging networks
-
Max Data Rate: 867 Mbps using 80 MHz bandwidth
-
Secure Transmission: Always-on WPA2 AES encryption for secure wireless communications
-
25 dBm TX Power: Ensures robust signal strength across long distances
Built to Last Outdoors
-
Weatherproof IPX6 Housing: Resists rain, wind, and dust for long-term deployments
-
-40 to 60°C Operating Range: Performs in extreme climates
-
Compact and Lightweight: Only 431 g (0.95 lb) for easy mounting
-

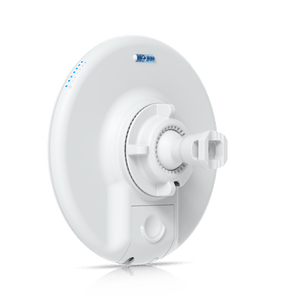

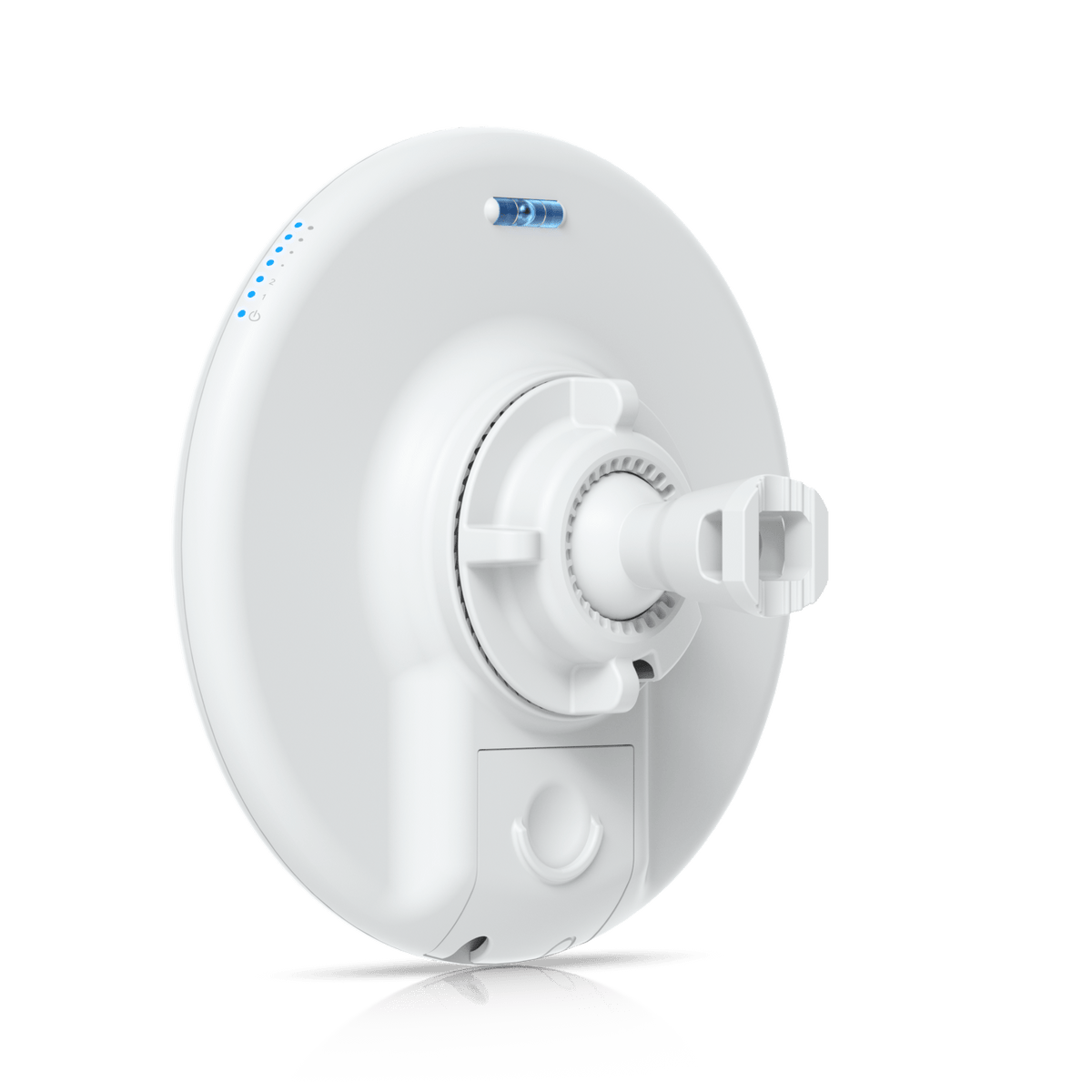

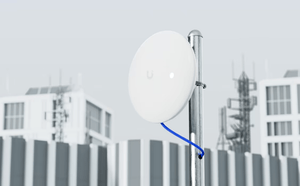

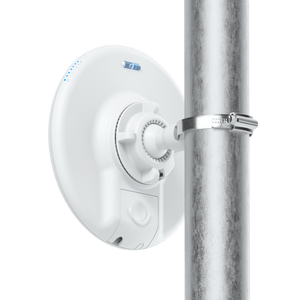

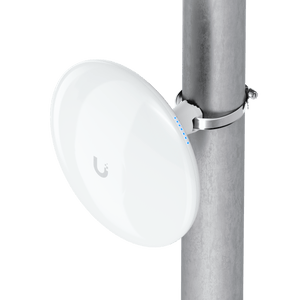

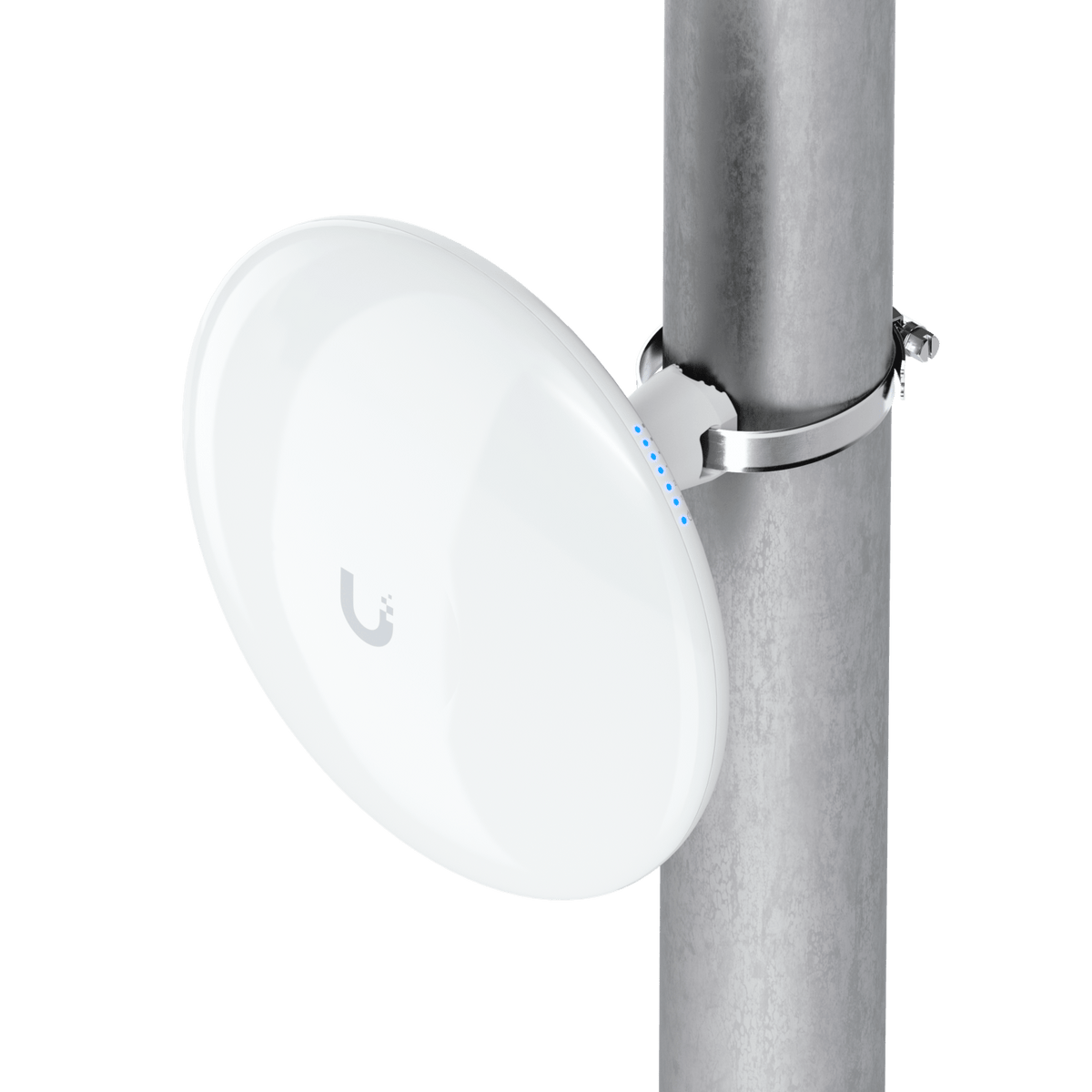

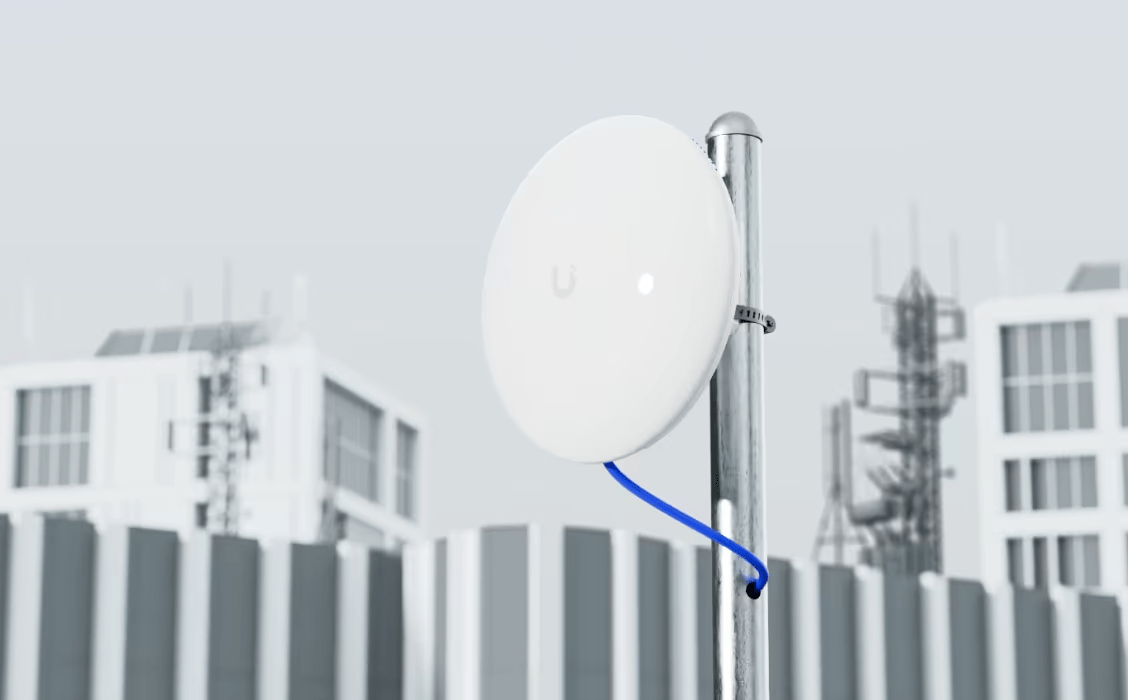

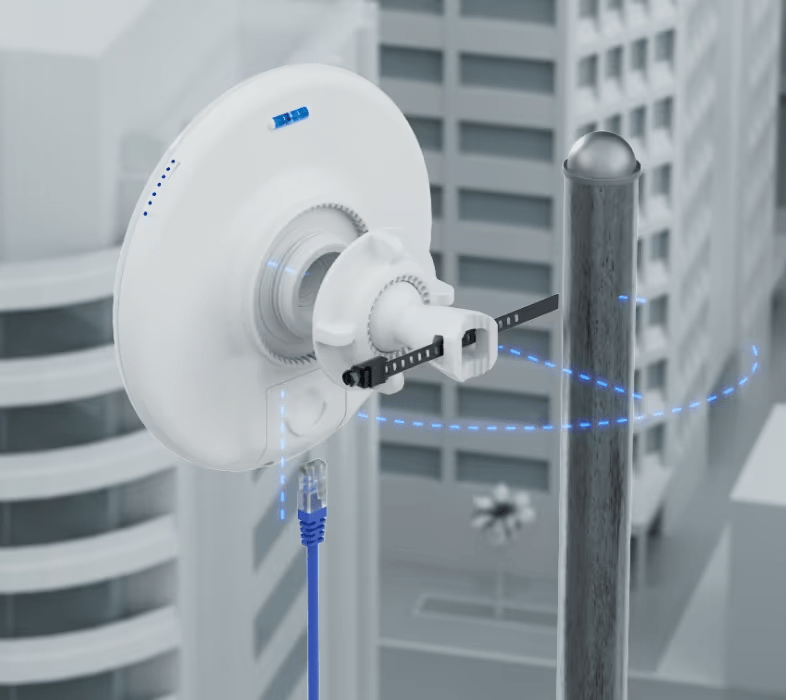

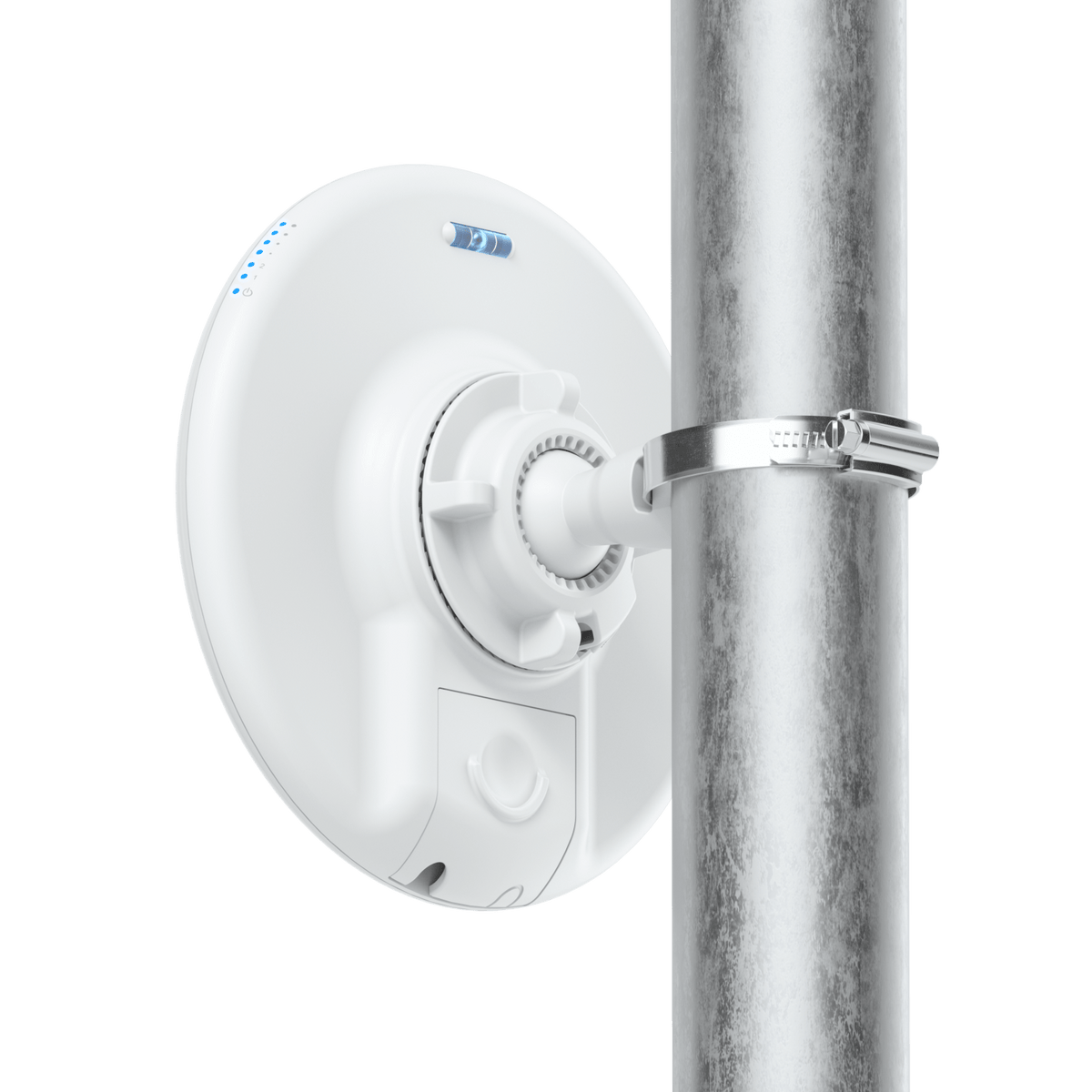

Mount Options: Supports both wall and pole mountings (0.8–2.1" diameter)
Simple Setup and Integration
-
UniFi Controller Required: Centralized management via UniFi Network Console or Hosting
-

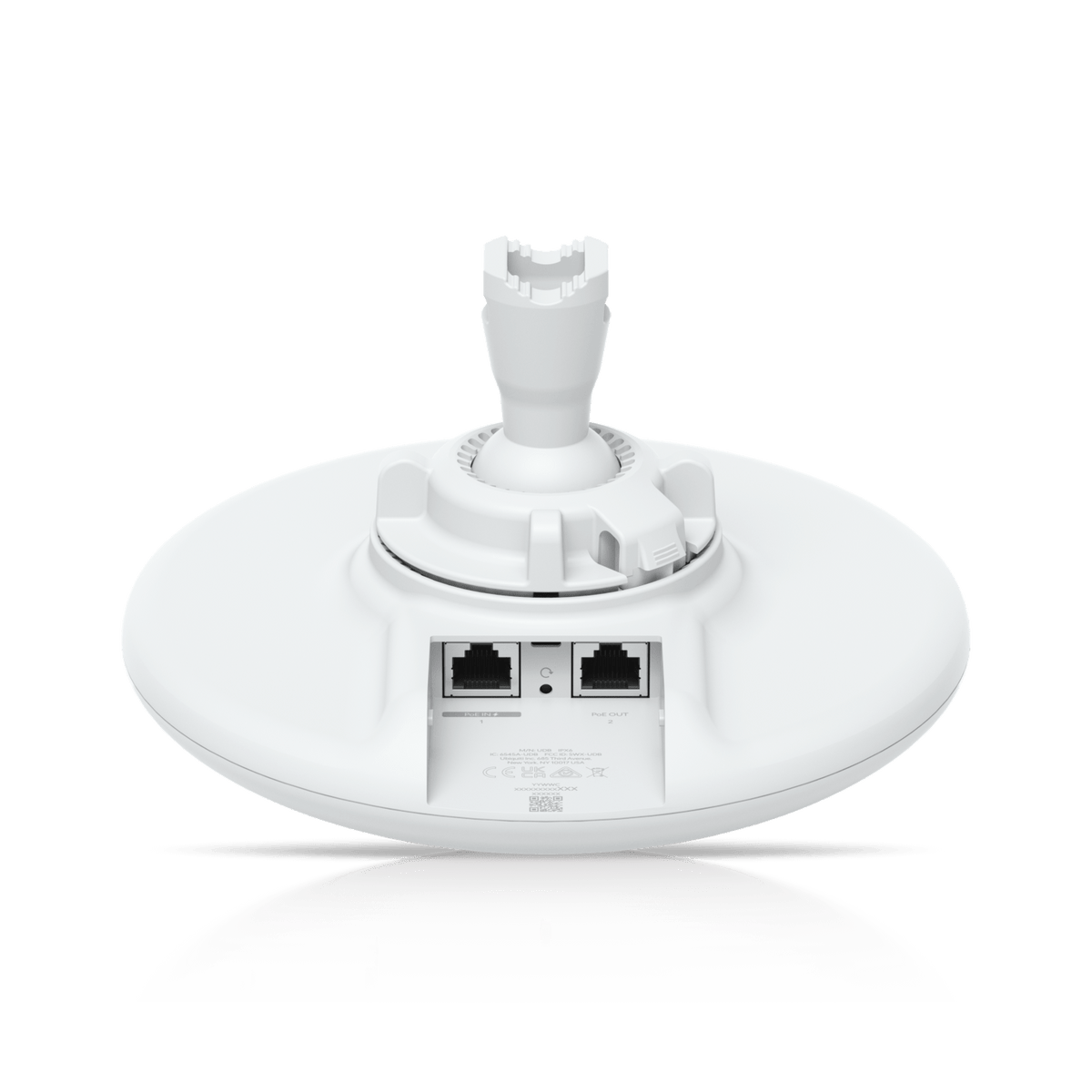

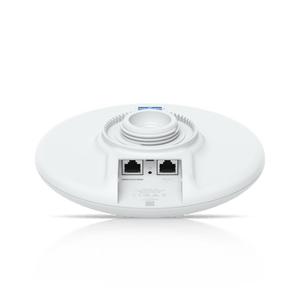

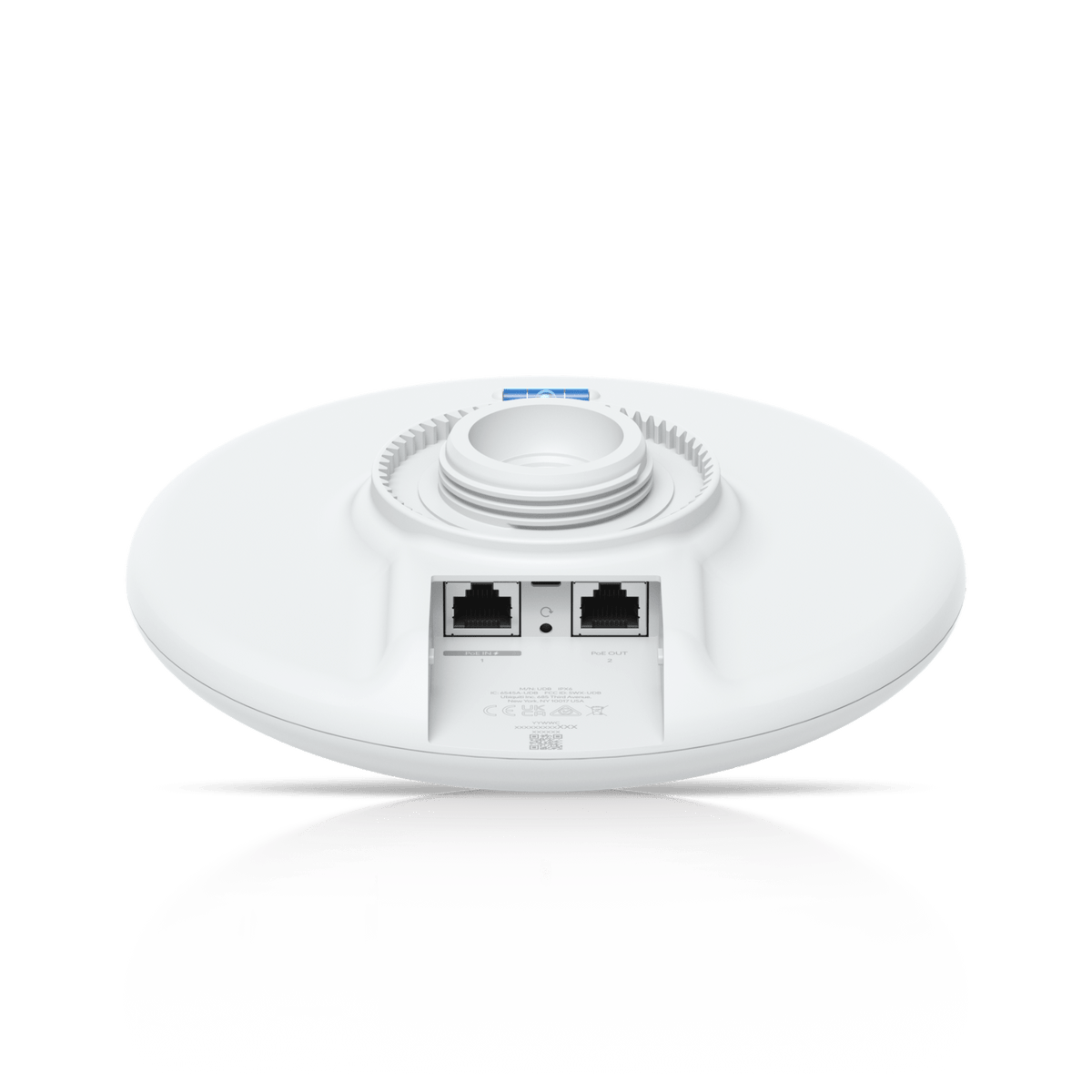

Dual GbE Ports: One PoE+ input, one PoE passthrough output (passive)
-

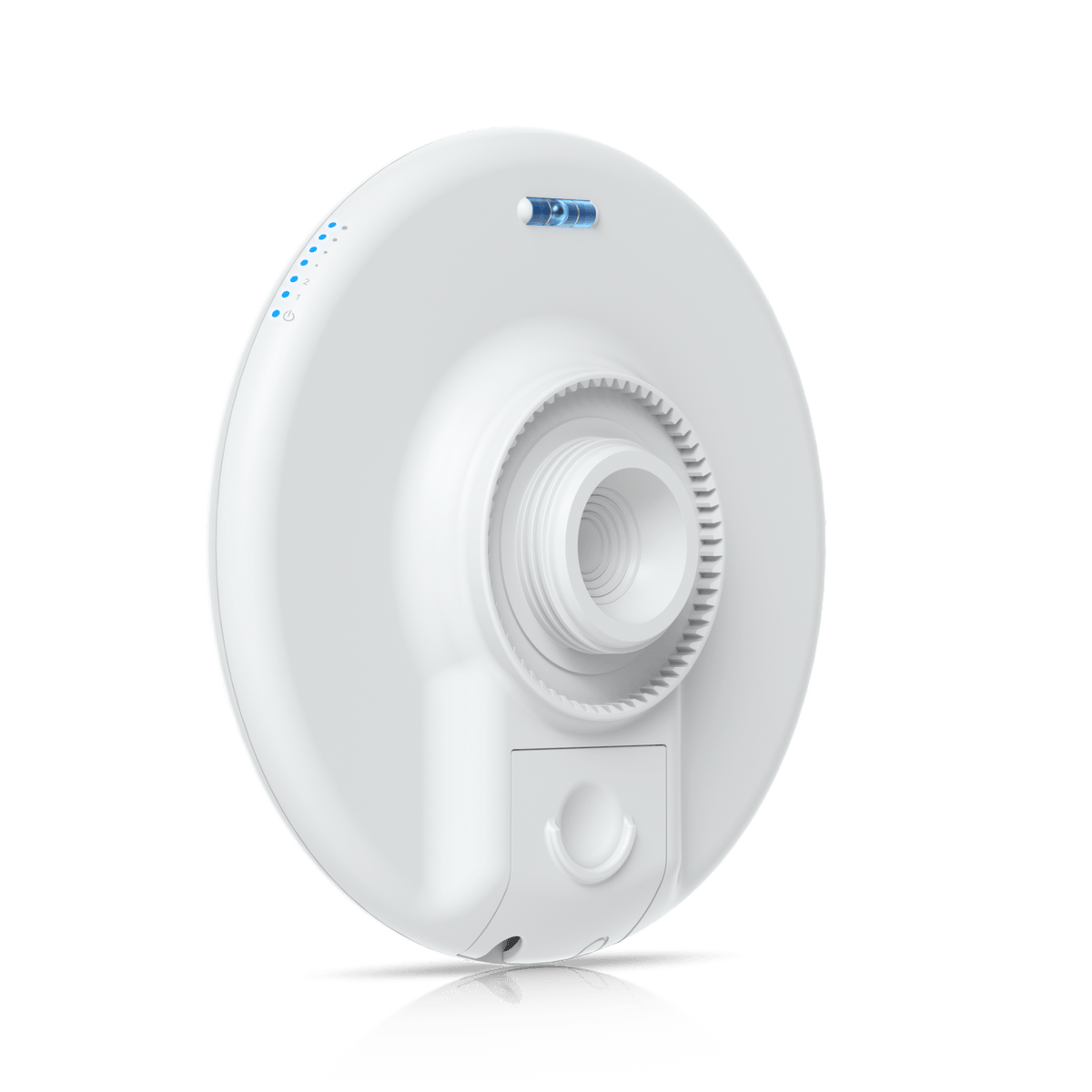

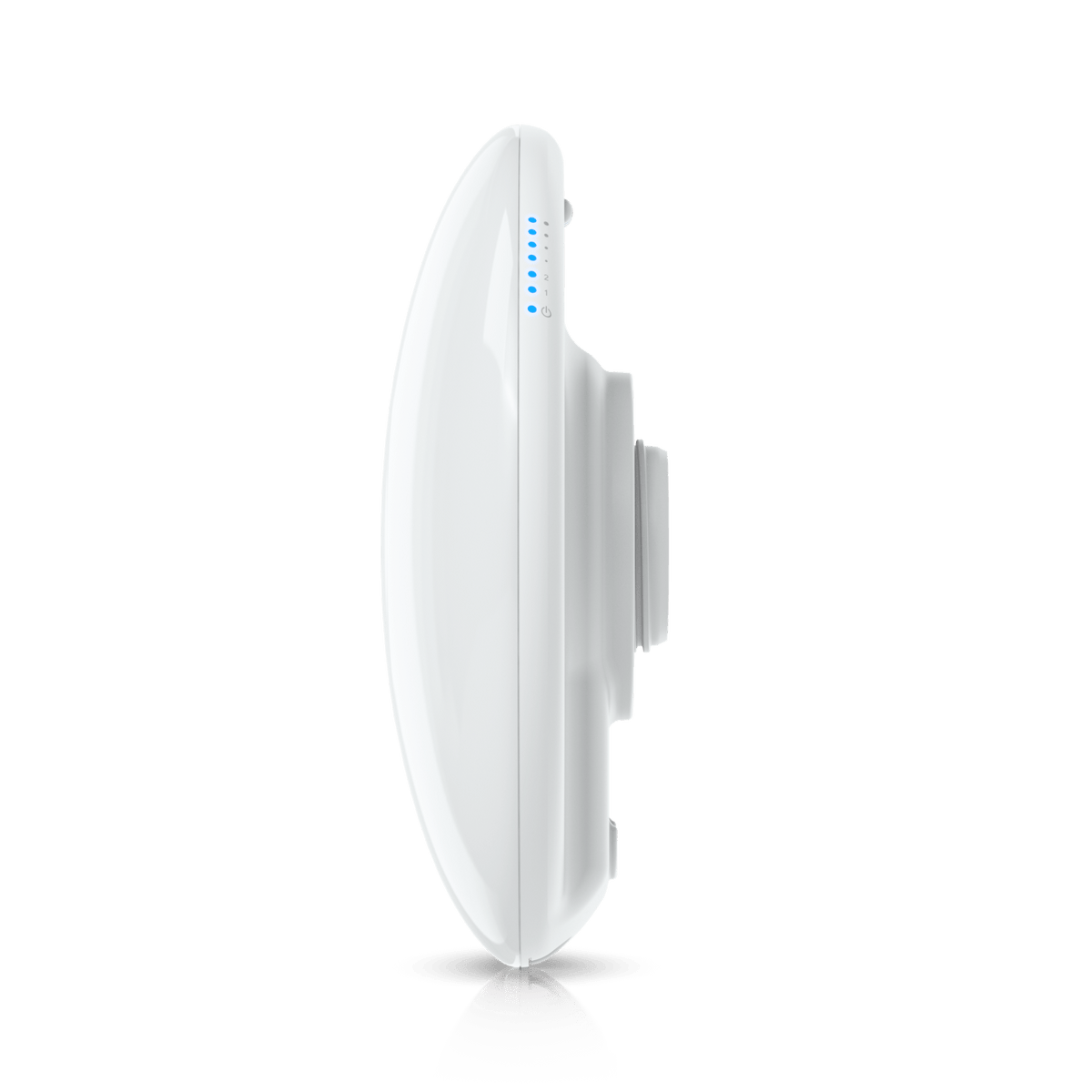

LED Indicators: Power, Ethernet, and 4-stage signal strength meter for alignment
-

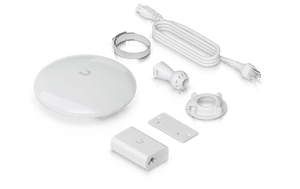

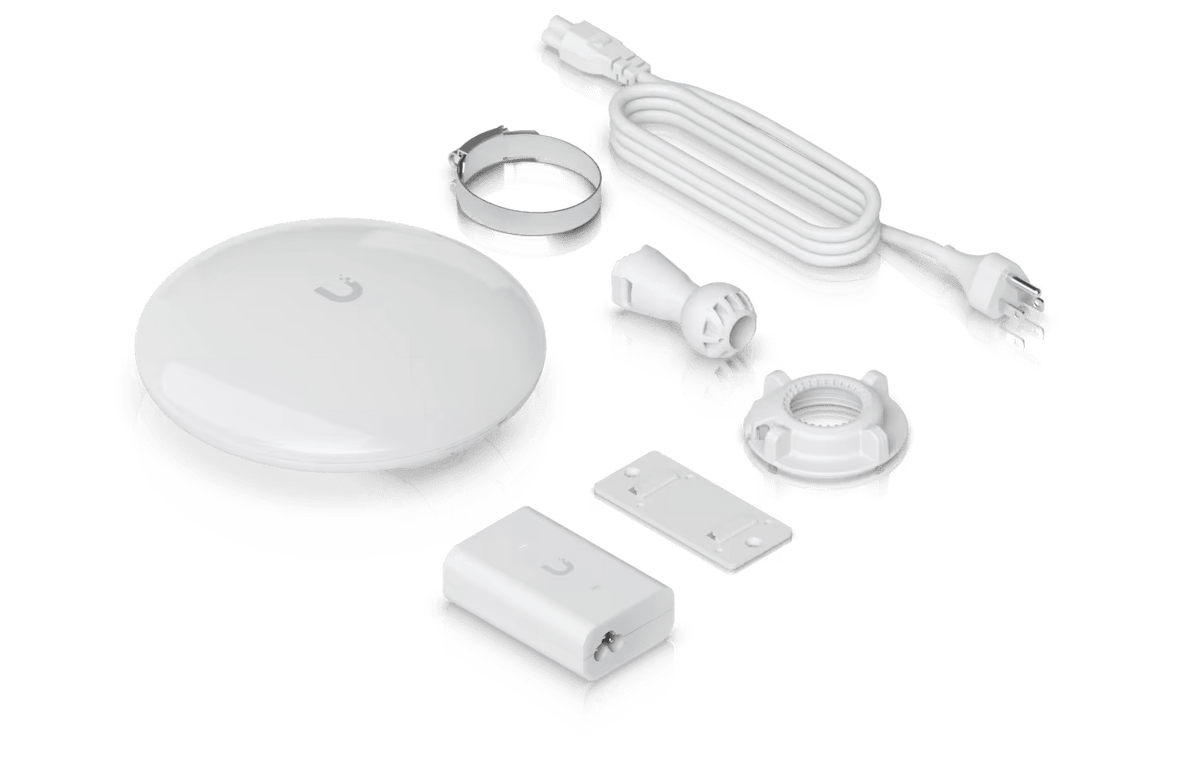

PoE Adapter Included: Convenient plug-and-play installation
Summary

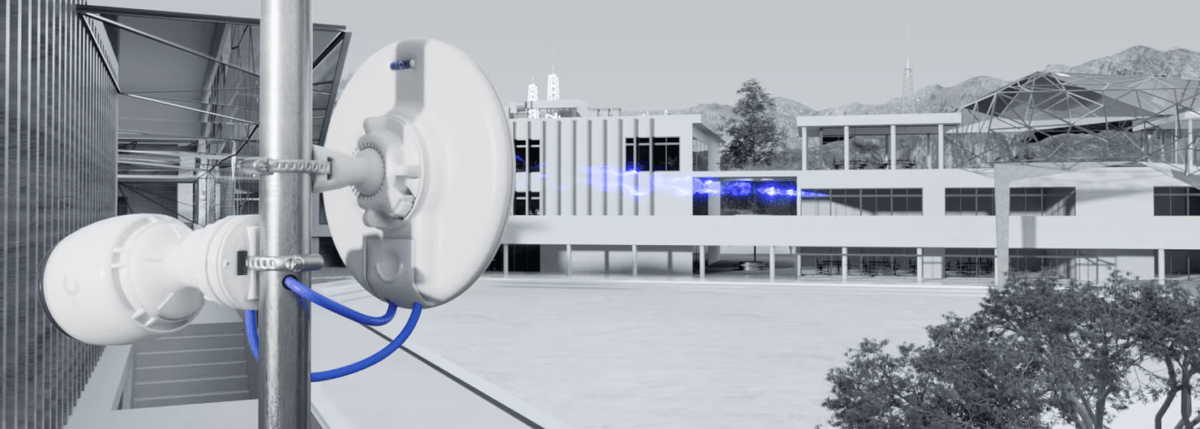

The Ubiquiti UDB-Pro Device Bridge Pro offers enterprise-grade point-to-point wireless bridging with exceptional ease of use, reliability, and long-distance performance. Whether extending coverage to a remote building, bridging facilities across large areas, or delivering internet to off-grid sites, the UDB-Pro makes high-throughput outdoor connectivity simple. With integrated PoE passthrough and complete UniFi Controller integration, it fits perfectly into modern network infrastructures.
Mga detalye
Ubiquiti UDB-Pro 5KM PTP Device Bridge Pro
| Specification | Details |
|---|---|

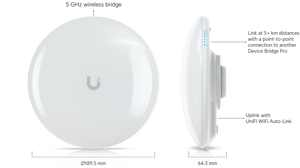

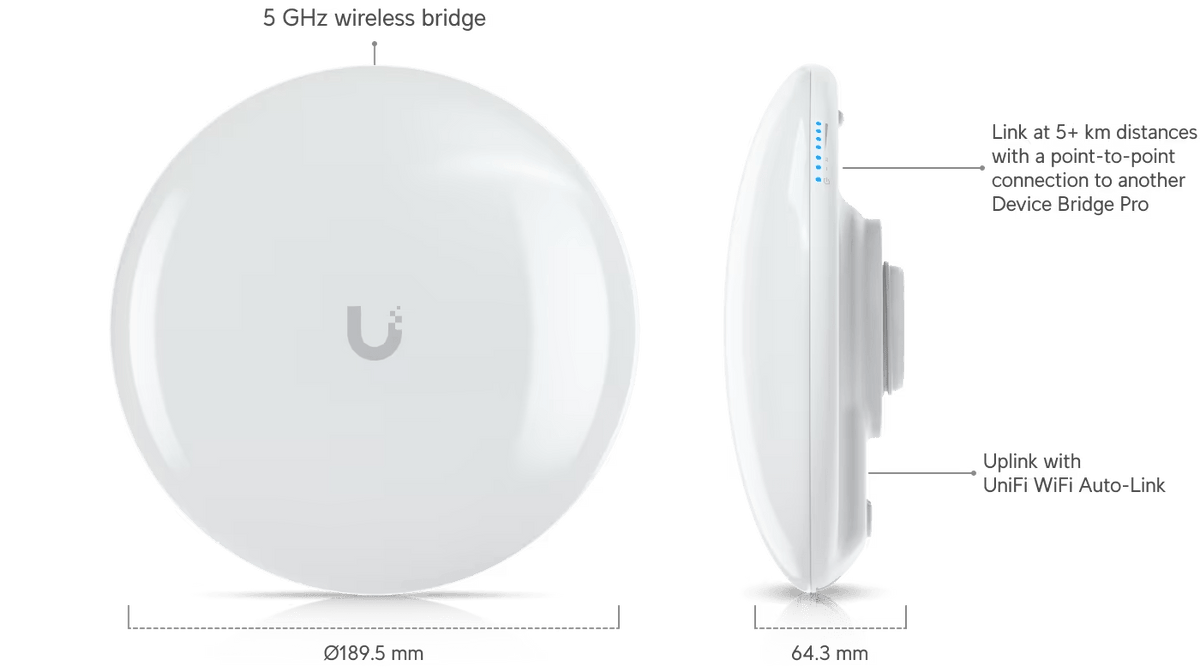

| Dimensions | Ø189.5 x 64.3 mm (Ø7.4 x 2.5 in) |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Wall, pole |
| Weatherproofing | IPX6 |
| Power Method | • PoE • PoE+ (required for PoE output) |
| MIMO | 5 GHz, 2 x 2 |
| Max. Data Rate (5 GHz) | 867 Mbps (BW80) |
| Antenna Gain (5 GHz) | 19 dBi |
| Max. TX Power (5 GHz) | 25 dBm |
| Max. Conducted TX Power | 25 dBm (combined) |
| Supported Data Rates (802.11a) | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Supported Data Rates (802.11n) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates (802.11ac) | 6.5 Mbps to 866.7 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| Wireless Security | WPA2 AES (Always On) |
| Max. Power Consumption | 9W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | 2 x GbE RJ45 ports |
| Antennas | Internal |
| Management | • 1 x PoE in (PoE output not used) • 1 x Passive PoE output |
| Wind Loading | 69 N at 200 km/h (15.5 lbf at 125 mph) |
| Weight (Device Only) | 431 g (0.95 lb) |
| Weight (With Mount) | 515 g (1.1 lb) |
| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Enclosure Material | UV-resistant polycarbonate |
| Pole Mount Diameter | 20–53.1 mm (0.8–2.1 in) |
| Button | Factory-reset |
| LEDs | System: Power, Ethernet, 4 x Signal Strength |
| Channel Bandwidth | 20/40/80 MHz |
| Certifications | CE, FCC, IC |
| Operating Frequency (US/CA) | • U-NII-1: 5150–5250 MHz • U-NII-2A: 5250–5350 MHz • U-NII-2C: 5470–5725 MHz • U-NII-3: 5725–5850 MHz |
| Operating Frequency (Worldwide) | 5150–5875 MHz |
| Ambient Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
