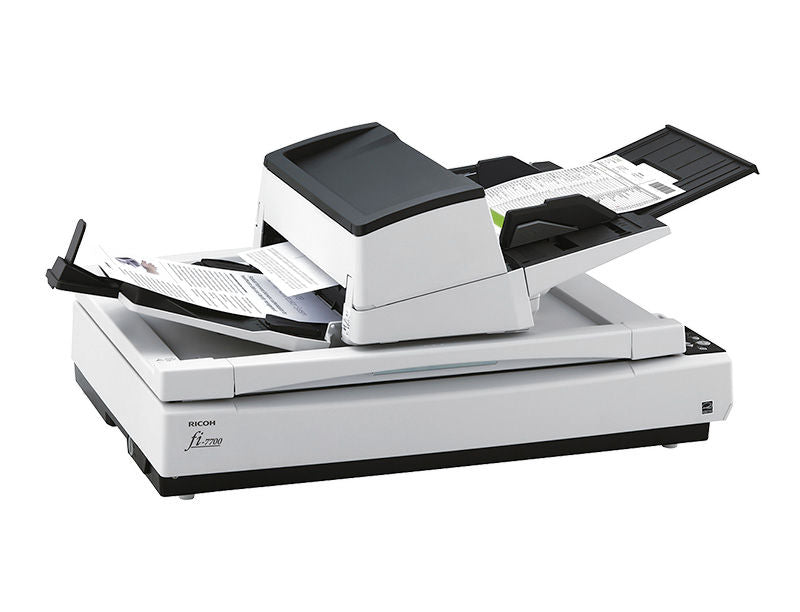

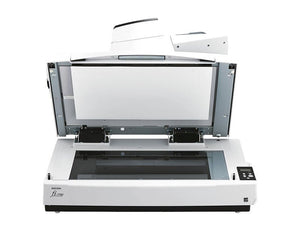

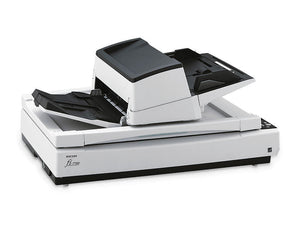

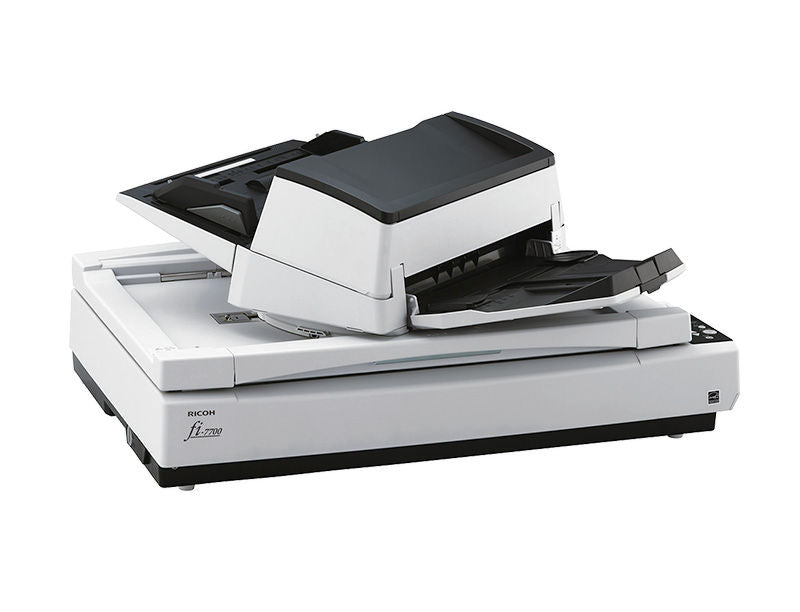

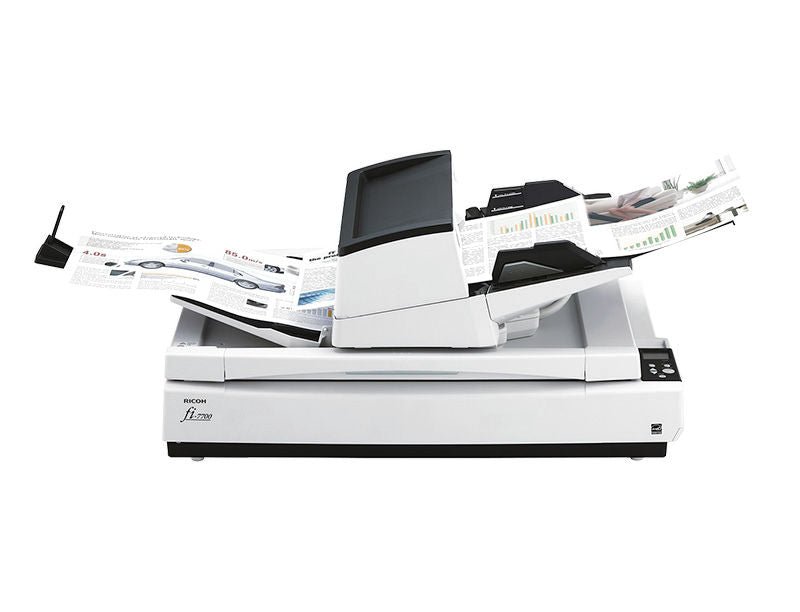

Ricoh fi-7700S Production Scanner
High Volume Meets High Flexibility Overview The fi-7700S is a heavy-duty production scanner designed to meet the demands of professional high-volume scanning. Achieving speeds of 75 ppm and boasting a 300-sheet loading capacity, this scanner can process up to 33,000 sheets a day. Engineered for reliability and ease of use, it can scan a wide array of document types—from thin paper and plastic cards to books and long documents. Key Features Reliable Mechanism for High-Volume Scanning Straight paper path for stable, continuous feeding Paper Picking Control to manage pressure on documents Capable of handling up to 33,000 sheets daily Versatility in Document Handling Manual Feed Mode for thicker or specialized documents Independent Side Guides to align mixed-size documents Compatible with PaperStream software for advanced image processing Protecting Your Important Documents Skew Reducer prevents misalignment and rescans Paper Protection function minimizes risk of document damage User-Focused Design Flexible, movable ADF and LCD panel for easy operation Back-lit operation panels on both sides for better accessibility Independent Side Guides and Stacker Side Guides for easier document management Advanced Software Solutions PaperStream IP and PaperStream Capture enhance workflow and productivity Supports MRZ recognition on passports and ID cards for efficient data entry Additional Details Straight Paper Path The straight paper path ensures smooth and continuous feeding, reducing interruptions. This feature is particularly useful for different kinds of document thicknesses and sizes, including special papers and envelopes. Skew Reducer and Paper Protection These features ensure that scanned images do not miss an edge and that documents are protected throughout the scanning process, respectively. Streamlined Workflow with PaperStream Software The software suite included with this scanner is designed to reduce manual work and improve productivity. It offers various capture features, enabling easy integration into your organization's workflow. Automatic Functions for Increased Efficiency Automatic sorting via barcodes and patchcodes allows you to load mixed batches and focus on other tasks, streamlining the workflow even further. PaperStream Capture Pro For those seeking advanced functionalities, the high-quality PaperStream Capture Pro is available. It enhances the fi-7700S’s superior scanning abilities with features such as high-level data extraction, image import, and multi-station licensing. Overall, the fi-7700S combines robust performance with flexible features, making it an ideal choice for organizations that need reliable, high-volume scanning solutions without compromising on versatility.
Add-ons (1)
Pickup available at 3005, Ubi Avenue 3, #01-88
Usually ready in 2-4 Business Day (Excluding Public Holiday)
Ricoh fi-7700S Production Scanner
Paglalarawan
High Volume Meets High Flexibility
Overview
The fi-7700S is a heavy-duty production scanner designed to meet the demands of professional high-volume scanning. Achieving speeds of 75 ppm and boasting a 300-sheet loading capacity, this scanner can process up to 33,000 sheets a day. Engineered for reliability and ease of use, it can scan a wide array of document types—from thin paper and plastic cards to books and long documents.
Key Features
Reliable Mechanism for High-Volume Scanning
- Straight paper path for stable, continuous feeding
- Paper Picking Control to manage pressure on documents
- Capable of handling up to 33,000 sheets daily
Versatility in Document Handling
- Manual Feed Mode for thicker or specialized documents
- Independent Side Guides to align mixed-size documents
- Compatible with PaperStream software for advanced image processing
Protecting Your Important Documents
- Skew Reducer prevents misalignment and rescans
- Paper Protection function minimizes risk of document damage
User-Focused Design
- Flexible, movable ADF and LCD panel for easy operation
- Back-lit operation panels on both sides for better accessibility
- Independent Side Guides and Stacker Side Guides for easier document management
Advanced Software Solutions
- PaperStream IP and PaperStream Capture enhance workflow and productivity
- Supports MRZ recognition on passports and ID cards for efficient data entry
Additional Details
Straight Paper Path
The straight paper path ensures smooth and continuous feeding, reducing interruptions. This feature is particularly useful for different kinds of document thicknesses and sizes, including special papers and envelopes.
Skew Reducer and Paper Protection
These features ensure that scanned images do not miss an edge and that documents are protected throughout the scanning process, respectively.
Streamlined Workflow with PaperStream Software
The software suite included with this scanner is designed to reduce manual work and improve productivity. It offers various capture features, enabling easy integration into your organization's workflow.
Automatic Functions for Increased Efficiency
Automatic sorting via barcodes and patchcodes allows you to load mixed batches and focus on other tasks, streamlining the workflow even further.
PaperStream Capture Pro
For those seeking advanced functionalities, the high-quality PaperStream Capture Pro is available. It enhances the fi-7700S’s superior scanning abilities with features such as high-level data extraction, image import, and multi-station licensing.
Overall, the fi-7700S combines robust performance with flexible features, making it an ideal choice for organizations that need reliable, high-volume scanning solutions without compromising on versatility.
Mga detalye
| Feature | Specification |
|---|---|
| Scanner Type | ADF / Manual Feed / Flatbed, Simplex |
| Scanning Speed (A4 Landscape) | ADF: Simplex: 75 ppm (200/300 dpi); Flatbed: 0.6 seconds (200/300 dpi) |
| Scanning Speed (A4 Portrait) | ADF: Simplex: 58 ppm (200/300 dpi); Flatbed: 0.9 seconds (200/300 dpi) |
| Image Sensor Type | Color CCD x 2 (front x 1, Flatbed x 1) |
| Light Source | White LED Array x 4 (front x 2, Flatbed x 2) |
| Optical Resolution | 600 dpi |
| Output Resolution | 50 to 600 dpi (1 dpi increments), 1,200 dpi (driver) |
| Output Format | Color: 24-bit; Grayscale: 8-bit; Monochrome: 1-bit |
| Background Colors | ADF: White/Black; Flatbed: White (or optional black) |
| Document Size (ADF) | Max: 304.8 x 431.8 mm; Min: 50.8 x 69 mm |
| Long Page Scanning | 5,588 mm (220 in.) |
| Document Size (Flatbed) | Max: 304.8 x 457.2 mm |
| Paper Weight (Thickness) | 20 to 413 g/m² |
| ADF Capacity | 300 sheets (A4 80 g/m²) |
| Expected Daily Volume | 33,000 sheets |
| Multifeed Detection | Overlap and Length detection |
| Interface | USB 3.1 Gen 1 / USB 2.0 / USB 1.1 |
| Power Requirements | AC 100 to 240 V ±10 % |
| Operating Environment | Temp: 5 to 35 °C; Humidity: 20 to 80% |
| Dimensions | 706 x 500 x 345 mm |
| Weight | 35 kg (77 lb) |
Consumables and Options
| Part Number | Description |
|---|---|
| PA03740-K010 | Brake Roller: Every 250,000 sheets or one year |
| PA03740-K011 | Pick Roller: Every 250,000 sheets or one year |
| PA03338-D960 | Black Document Pad |
| PA43404-A685 | PaperStream Capture Pro optional license |
