Ultra-Flexible 5G Connectivity for Any UniFi Deployment

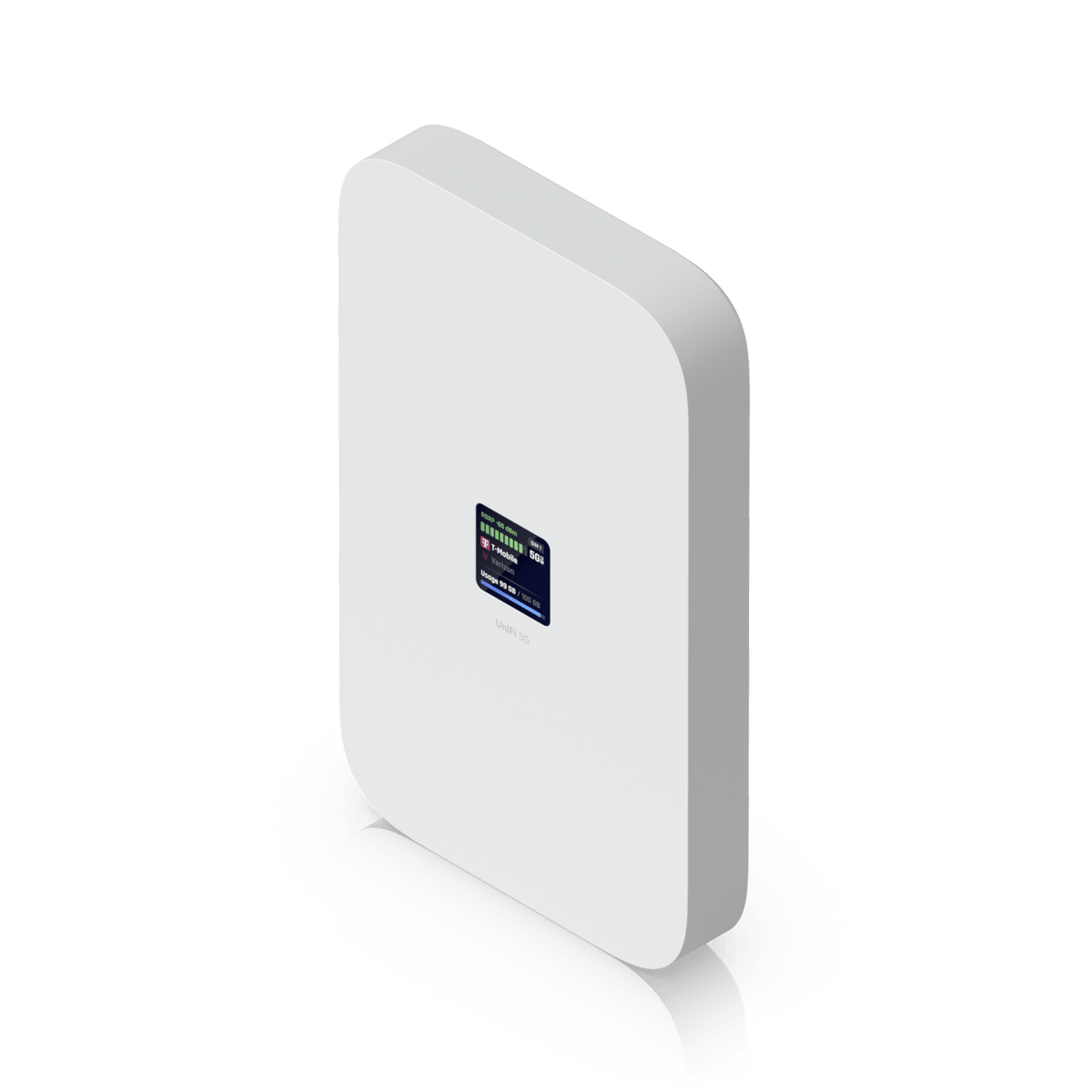

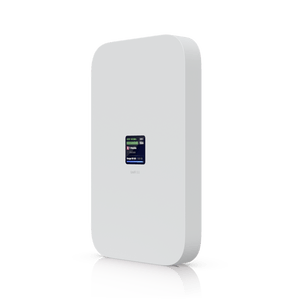

The Ubiquiti U5G-Max UniFi 5G Max delivers powerful Sub-6 5G performance in a compact, PoE-powered modem designed for effortless integration into any UniFi network. Whether used as a primary WAN, load-balanced uplink, or automated failover, it instantly appears as a UniFi WAN interface the moment it is connected to any PoE port. With flexible nano-SIM + eSIM support, a repositionable design, and fast carrier switching, the U5G-Max is built for high-performance deployments at the core or at the edge.
Highlights
-
Plug-and-Play UniFi WAN Interface: Automatically adopts on any PoE port without new cabling.
-
High-Speed 5G Data: Supports up to 2 Gbps downlink with ultra-low latency.
-
Dual SIM (nano-SIM + eSIM): Unlocked hardware for all major carriers.
-

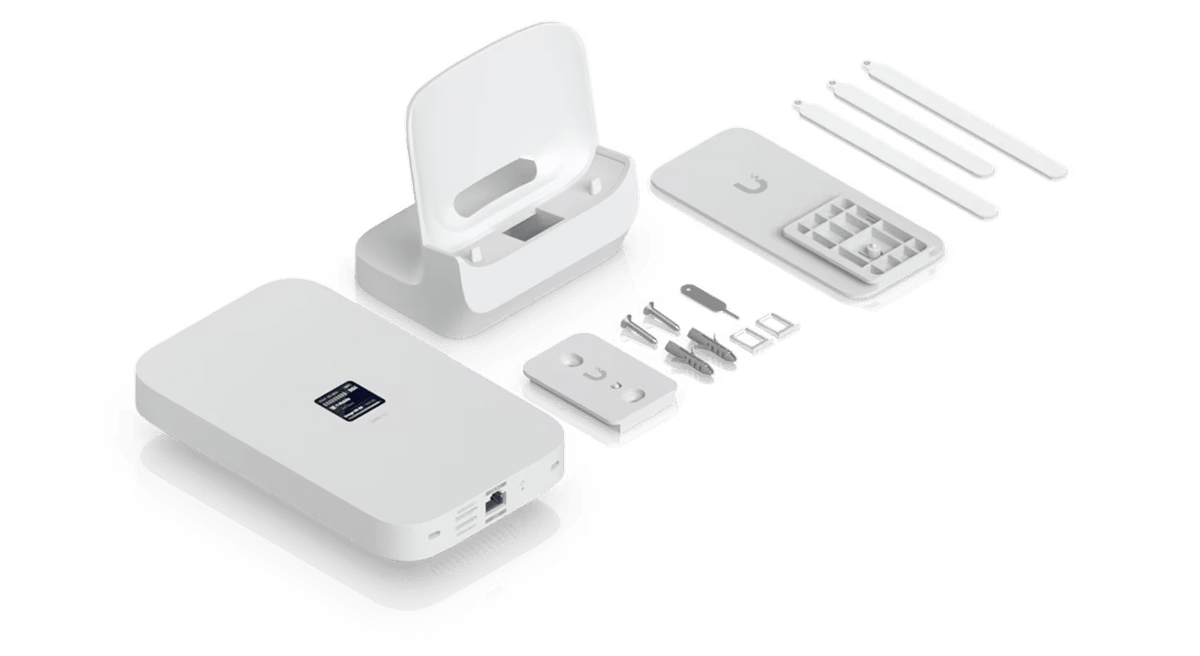

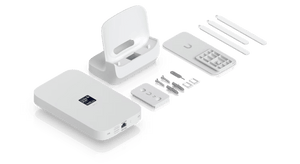

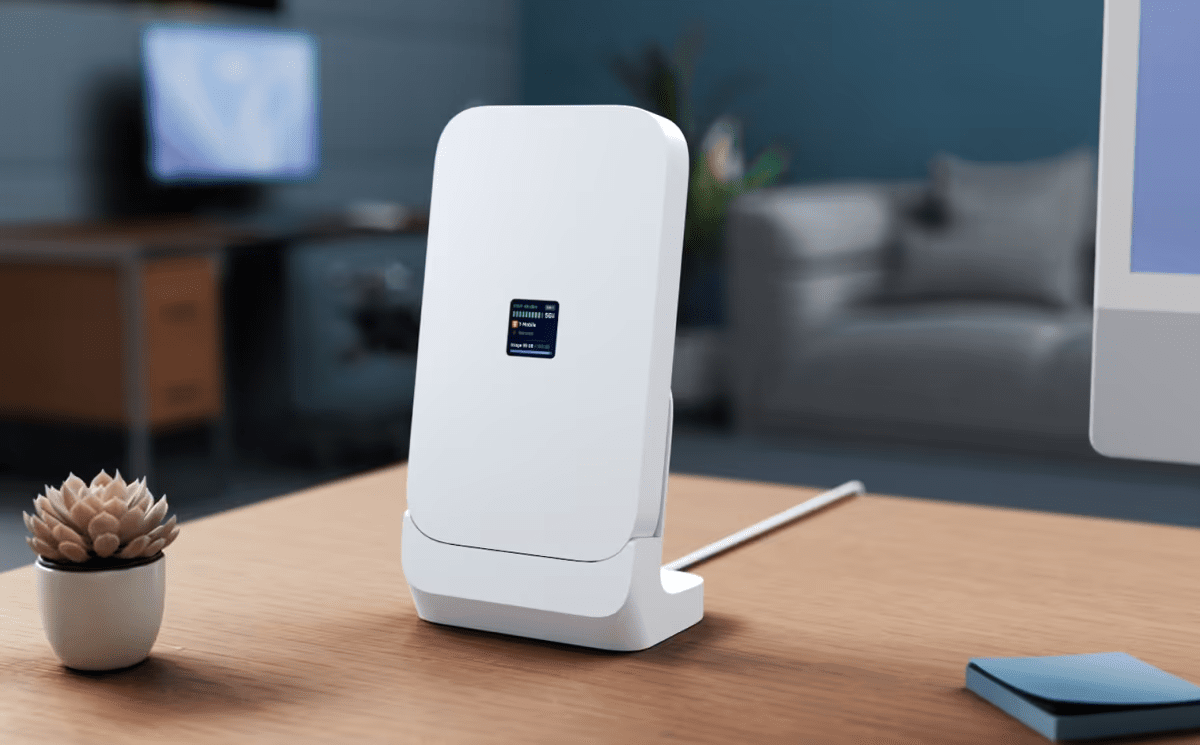

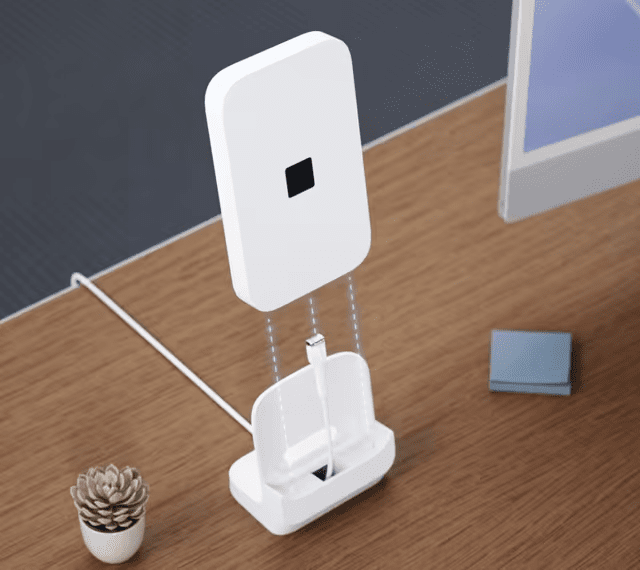

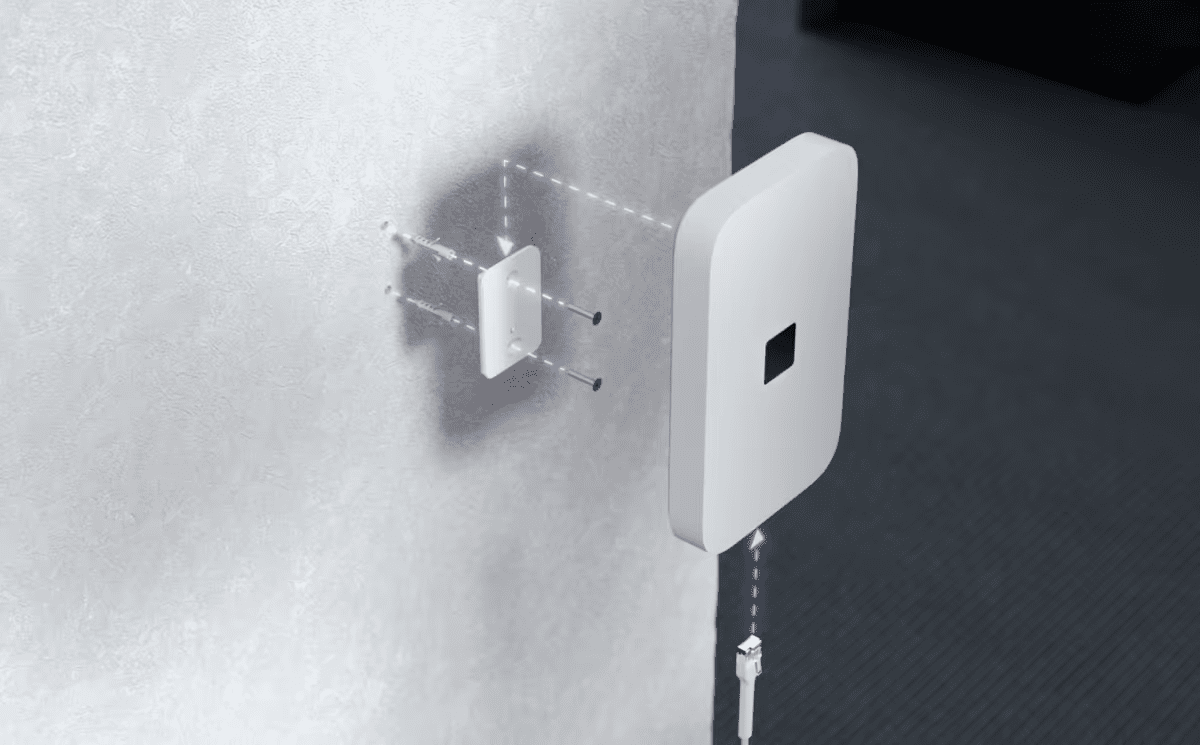

Flexible Mounting: Desk, wall, and window mounts included for optimal signal placement.
-
Compact Modem Design: Lightweight, stylish, and built for fast deployment.
-
Policy-Based Routing: Define exactly how 5G is used per VLAN, client, or traffic class.
Key Features
Simple Deployment with Maximum Flexibility
-

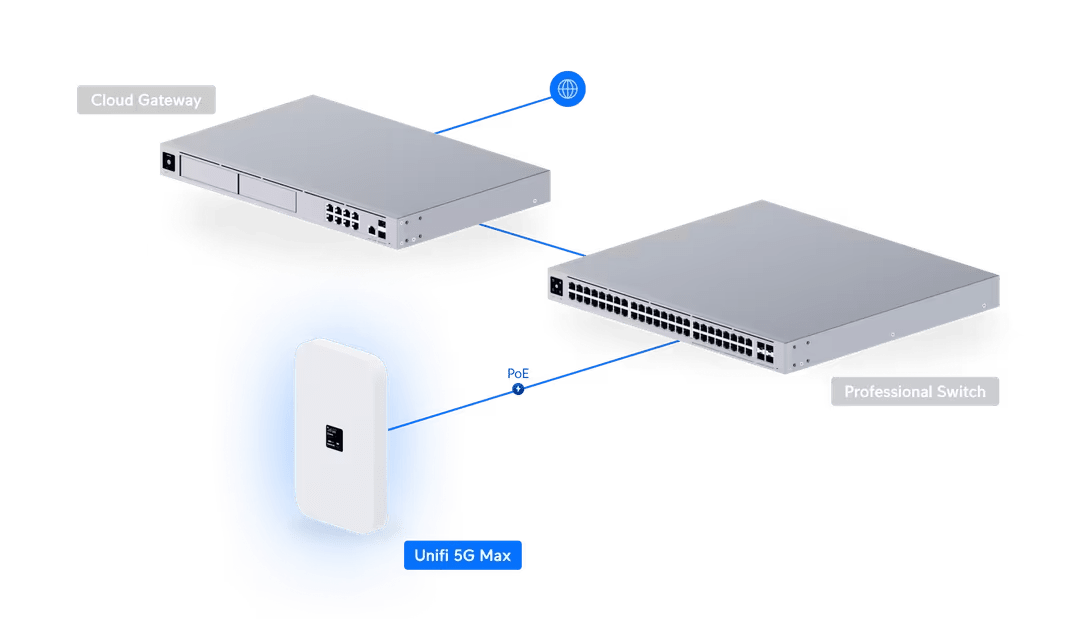

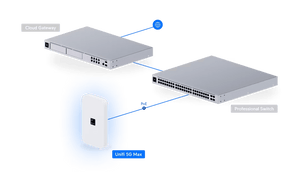

Instant UniFi Adoption: Connect to any PoE port—switch or gateway—and it becomes a WAN option instantly.
-

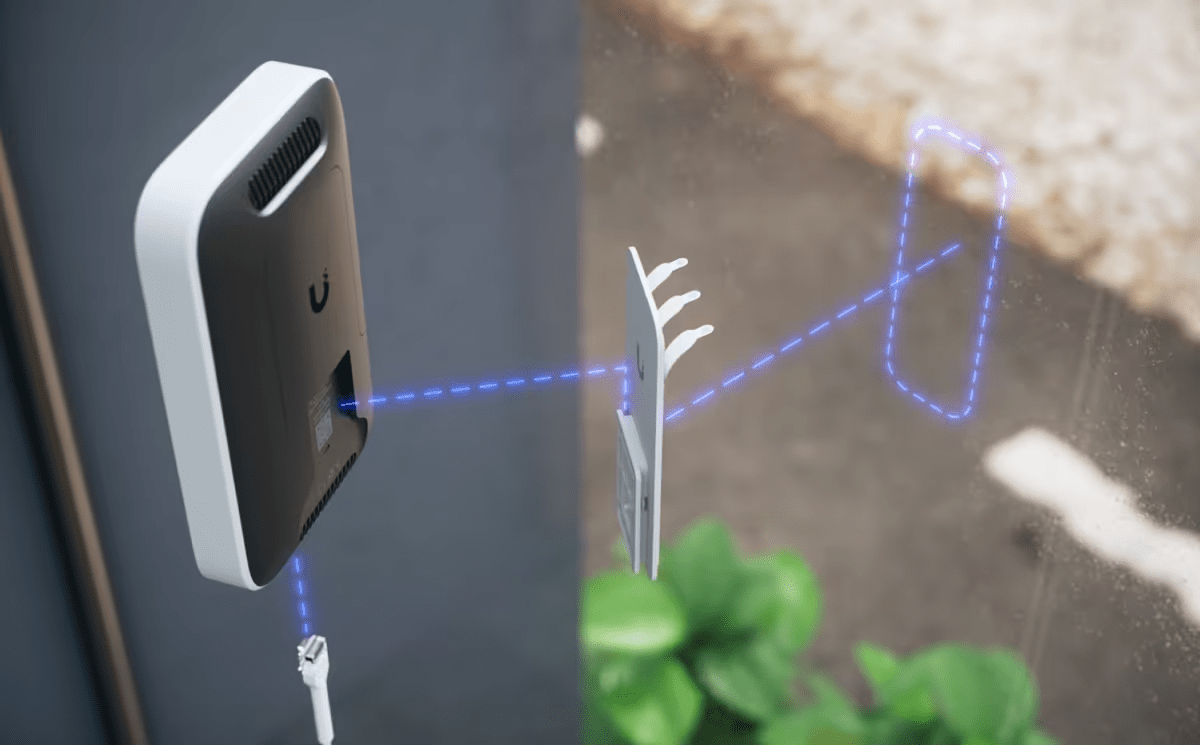

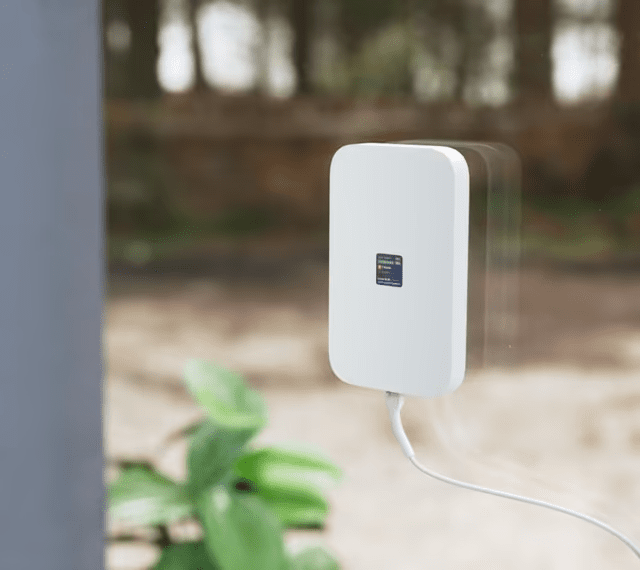

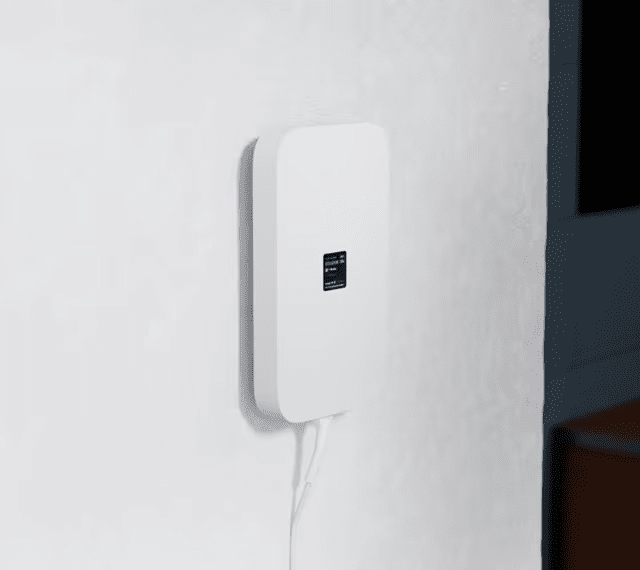

Flexible Placement: Wall, desk, or window mounting allows ideal signal optimization.
-

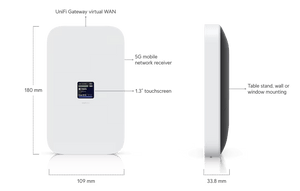

Compact Footprint: 180 x 109 x 33.8 mm, designed to blend into any environment.
Carrier Freedom and High-Speed 5G
-
Unlocked Global 5G NR Modem: Supports extensive Sub-6 bands for worldwide compatibility.
-

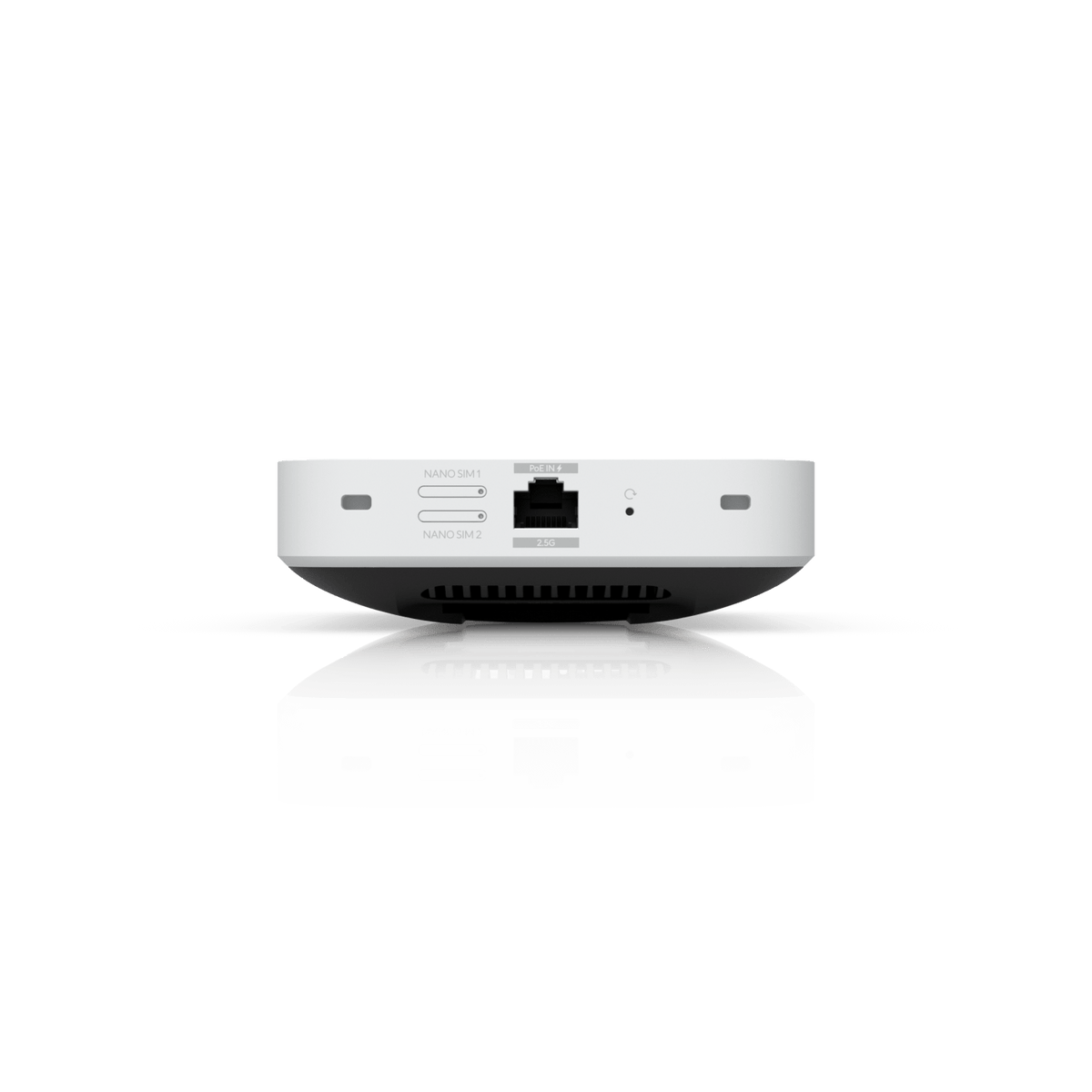

Dual SIM Support: One nano-SIM and one nano-SIM or eSIM for easy carrier switching.
-
Peak Performance:
-
5G NSA: 3.4 Gbps DL, 560 Mbps UL
-
5G SA: 1.8 Gbps DL, 650 Mbps UL
-
LTE: 1.6 Gbps DL, 210 Mbps UL
-
-
Ultra-Low Latency: Ideal for SD-WAN, VoIP, remote offices, and IoT deployments.
Advanced UniFi WAN Control
-
Primary WAN, Failover, or Load Balancing: Choose how 5G integrates into your network.
-
Per-SIM Data Usage Limits: Prevent unexpected carrier overages with automatic caps.
-
SLA-Driven Routing: Apply granular traffic rules using UniFi’s SD-WAN features.
-
Full UniFi Management: Simple monitoring and configuration through the UniFi Network app.
Hardware and Build Quality
-
Single 2.5 GbE Port: Ensures high-speed uplink into your UniFi gateway or switch.
-
Embedded 4-Antenna Array: Engineered for stable indoor 5G performance across multiple bands.
-
PoE Powered: Max consumption 14.5W; eliminates bulky power bricks.
-

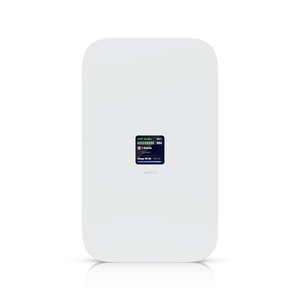

1.3" Touchscreen Display: Shows signal strength, network mode, and device status.
-
Durable Materials: Polycarbonate and aluminum alloy enclosure with IK04 resistance.
Summary / Conclusion
The Ubiquiti U5G-Max UniFi 5G Max is a best-in-class PoE-powered 5G modem designed for modern UniFi networks that demand flexibility, ease of deployment, and carrier independence. With powerful Sub-6 5G, advanced routing controls, dual SIM support, and effortless UniFi integration, it delivers enterprise-grade WAN performance for homes, offices, and remote sites alike.
