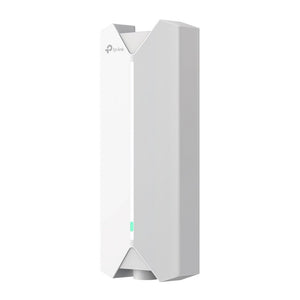

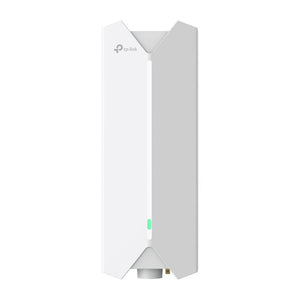

TP-Link Festa F65-Outdoor AX3000 Outdoor WiFi 6 Access Point
AX3000 Outdoor WiFi 6 Access Point for Wide Coverage and Robust Connectivity The TP-Link Festa F65-Outdoor AX3000 Outdoor WiFi 6 Access Point delivers high-speed wireless connectivity up to 3.0 Gbps and is built to withstand harsh weather conditions. With its IP67-rated enclosure, smart antennas, and 6KV lightning protection, it provides superior performance for outdoor environments, ensuring seamless mesh networking and centralized cloud management. Key Features WiFi 6 Speeds Up to 3.0 Gbps Achieve 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz for fast, efficient connectivity across multiple devices. Festa Mesh and Seamless Roaming Ensures smooth and uninterrupted transitions between access points, ideal for large outdoor areas like pool decks, venues, gardens, and more. Robust Outdoor Design Features an IP67-rated enclosure to withstand dust, water, and extreme weather, along with 6KV lightning and 15KV ESD protection for added durability. Free Cloud-Based Management Manage the entire network via the Festa app or web interface with Zero-Touch Provisioning (ZTP) for easy setup and remote management. Smart Antennas and High-Power Amplifiers Enhanced coverage and performance through smart antennas and high-powered amplifiers that ensure robust, full-range coverage for large outdoor areas. Flexible Power Options with PoE+ and Passive PoE Supports 802.3at PoE and Passive PoE for flexible installation, reducing the need for additional wiring by combining data and power in one cable. WiFi 6 Technology MU-MIMO & OFDMA Enables simultaneous device connections and reduces network congestion, ensuring faster and more reliable performance in busy environments. HE160 & 1024-QAM Allows greater bandwidth and higher data transmission rates, supporting high-performance wireless connectivity for multiple users. Beamforming and Airtime Fairness Optimizes WiFi signal direction and ensures fair distribution of bandwidth across all connected devices, improving overall network efficiency. Technical Specifications Specification Details WiFi Speeds Up to 3.0 Gbps (574 Mbps on 2.4 GHz + 2402 Mbps on 5 GHz) Networking Interface 1× Gigabit Ethernet Port PoE Support 802.3at PoE and Passive PoE Power Supply Options PoE+ Switch or Passive PoE Adapter (included) Management Interface Festa App, Web-Based Cloud Management Outdoor Protection IP67-rated, 6KV lightning, 15KV ESD protection Advanced Features MU-MIMO, OFDMA, Beamforming, Airtime Fairness Seamless Mesh Networking Wide Range Coverage With 200m+ on 2.4 GHz and 300m+ on 5 GHz, the Festa F65-Outdoor provides wide-range coverage, ideal for large, open areas. Smart Antenna Technology Reduces interference and enhances coverage through smart horizontally and vertically polarized antennas for improved performance. Seamless Roaming and Mesh Technology Ensures users are always connected to the optimal access point without disruptions, reducing the need for redundant cabling with wireless mesh technology. Easy Installation and Robust Protection Multiple Installation Options Supports pole mounting and wall mounting for flexible installation in any outdoor space. Weatherproof and Durable Built to withstand the harshest environments with IP67 weatherproof protection and lightning resistance, ensuring reliable performance in all conditions. Summary The TP-Link Festa F65-Outdoor AX3000 Outdoor WiFi 6 Access Point offers high-speed, wide-range wireless connectivity for outdoor environments. With 3.0 Gbps WiFi 6 speeds, smart antennas, mesh networking, and cloud-based centralized management, the F65-Outdoor is ideal for venues, gardens, pool decks, and large outdoor facilities. Its IP67-rated weatherproof enclosure and PoE+ support make it a robust and flexible solution for seamless, high-performance outdoor networking.
Paglalarawan
AX3000 Outdoor WiFi 6 Access Point for Wide Coverage and Robust Connectivity
The TP-Link Festa F65-Outdoor AX3000 Outdoor WiFi 6 Access Point delivers high-speed wireless connectivity up to 3.0 Gbps and is built to withstand harsh weather conditions. With its IP67-rated enclosure, smart antennas, and 6KV lightning protection, it provides superior performance for outdoor environments, ensuring seamless mesh networking and centralized cloud management.
Key Features
-

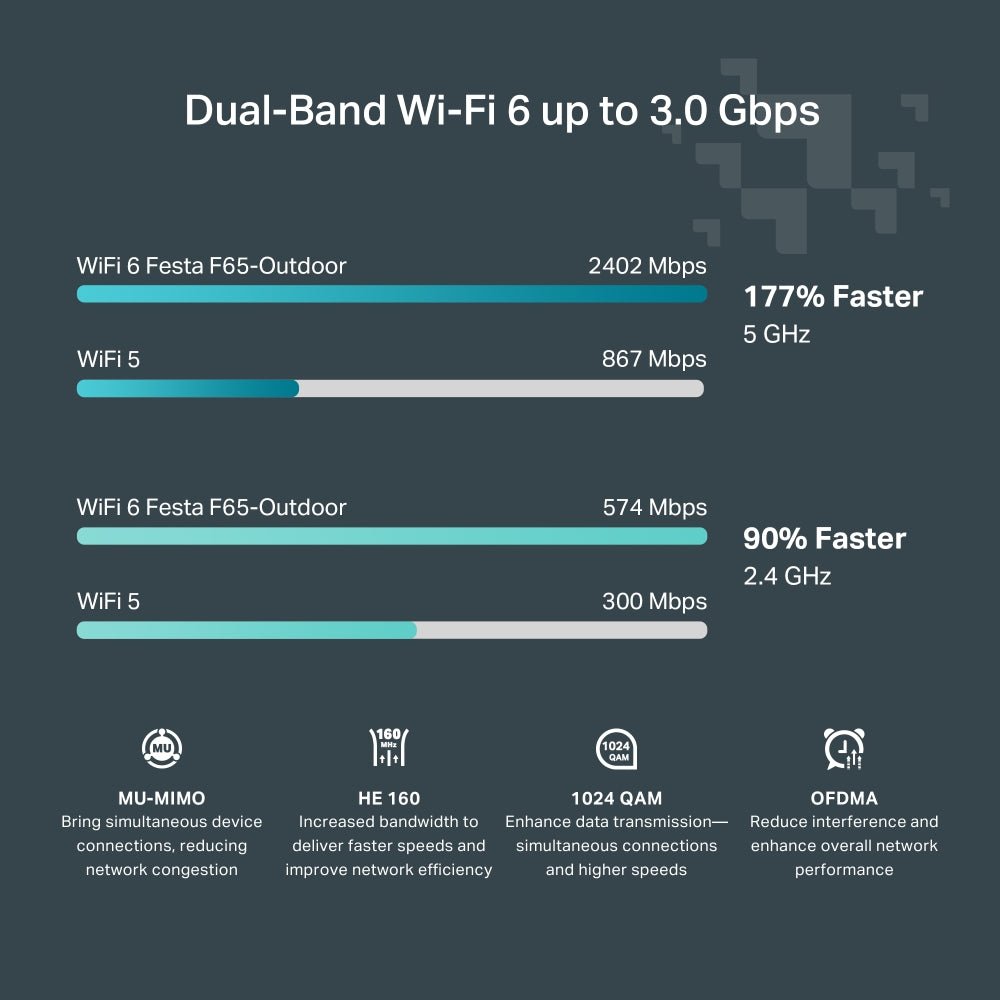

WiFi 6 Speeds Up to 3.0 Gbps
- Achieve 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz for fast, efficient connectivity across multiple devices.
-
Festa Mesh and Seamless Roaming
- Ensures smooth and uninterrupted transitions between access points, ideal for large outdoor areas like pool decks, venues, gardens, and more.
-
Robust Outdoor Design
- Features an IP67-rated enclosure to withstand dust, water, and extreme weather, along with 6KV lightning and 15KV ESD protection for added durability.
-

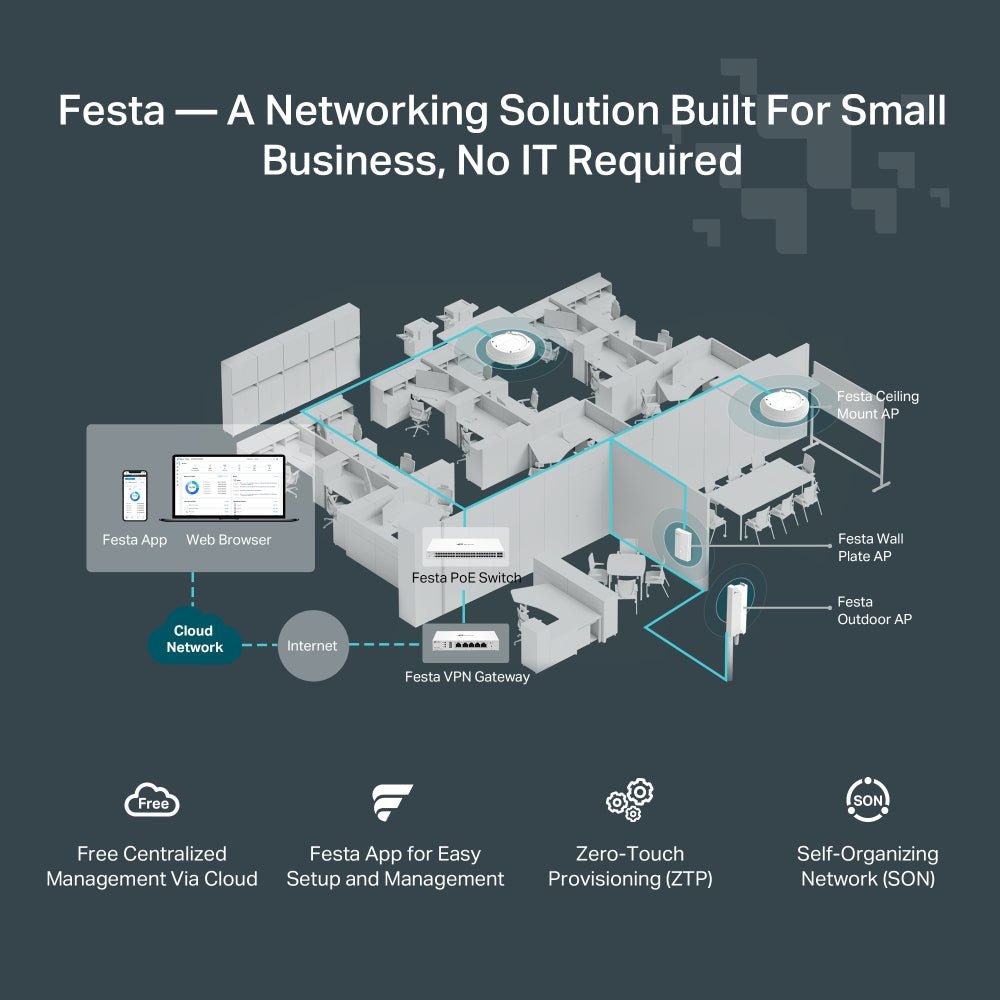

Free Cloud-Based Management

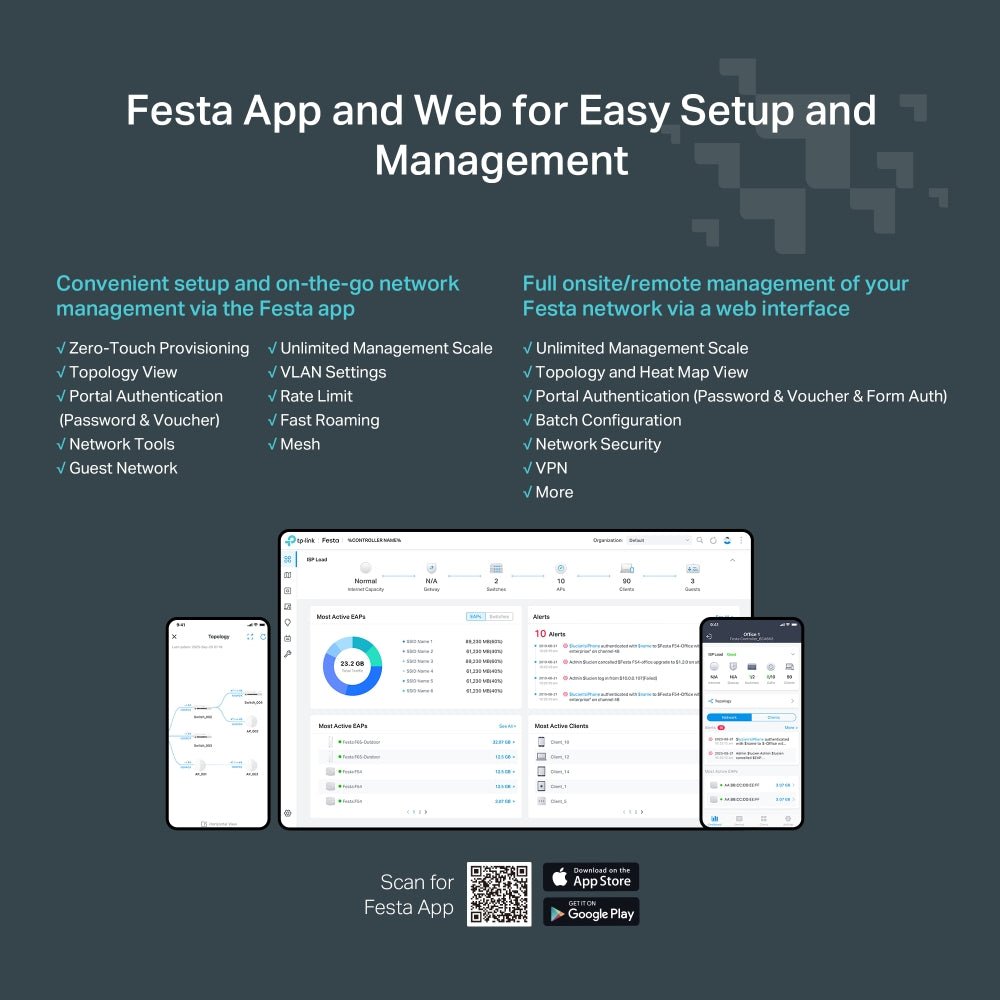

- Manage the entire network via the Festa app or web interface with Zero-Touch Provisioning (ZTP) for easy setup and remote management.
-
Smart Antennas and High-Power Amplifiers
- Enhanced coverage and performance through smart antennas and high-powered amplifiers that ensure robust, full-range coverage for large outdoor areas.
-
Flexible Power Options with PoE+ and Passive PoE
- Supports 802.3at PoE and Passive PoE for flexible installation, reducing the need for additional wiring by combining data and power in one cable.
WiFi 6 Technology
-
MU-MIMO & OFDMA
- Enables simultaneous device connections and reduces network congestion, ensuring faster and more reliable performance in busy environments.
-
HE160 & 1024-QAM
- Allows greater bandwidth and higher data transmission rates, supporting high-performance wireless connectivity for multiple users.
-
Beamforming and Airtime Fairness
- Optimizes WiFi signal direction and ensures fair distribution of bandwidth across all connected devices, improving overall network efficiency.
Technical Specifications
| Specification | Details |
|---|---|
| WiFi Speeds | Up to 3.0 Gbps (574 Mbps on 2.4 GHz + 2402 Mbps on 5 GHz) |
| Networking Interface | 1× Gigabit Ethernet Port |
| PoE Support | 802.3at PoE and Passive PoE |
| Power Supply Options | PoE+ Switch or Passive PoE Adapter (included) |
| Management Interface | Festa App, Web-Based Cloud Management |
| Outdoor Protection | IP67-rated, 6KV lightning, 15KV ESD protection |
| Advanced Features | MU-MIMO, OFDMA, Beamforming, Airtime Fairness |
Seamless Mesh Networking
-
Wide Range Coverage
- With 200m+ on 2.4 GHz and 300m+ on 5 GHz, the Festa F65-Outdoor provides wide-range coverage, ideal for large, open areas.
-
Smart Antenna Technology
- Reduces interference and enhances coverage through smart horizontally and vertically polarized antennas for improved performance.
-
Seamless Roaming and Mesh Technology
- Ensures users are always connected to the optimal access point without disruptions, reducing the need for redundant cabling with wireless mesh technology.
Easy Installation and Robust Protection
-
Multiple Installation Options

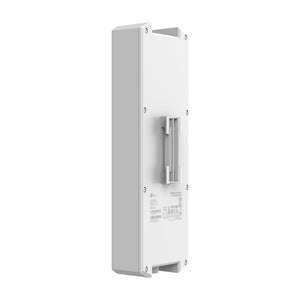

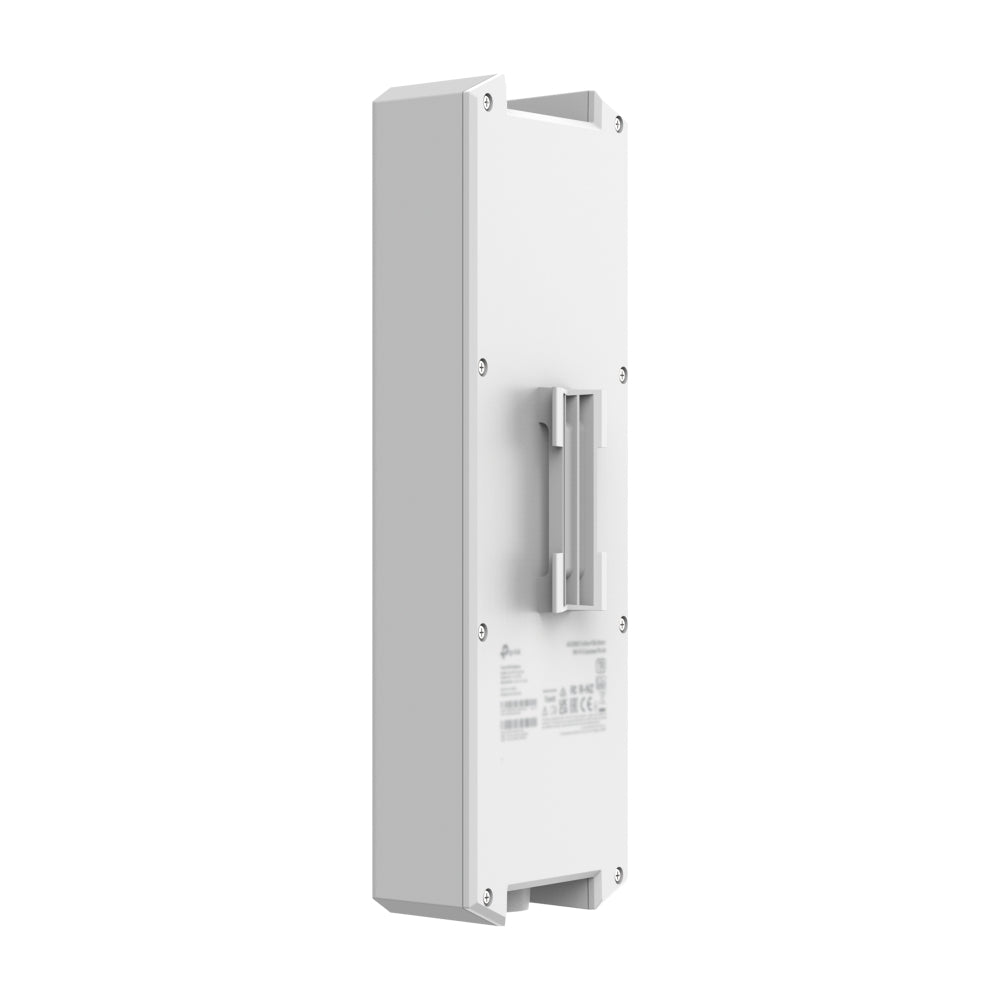

- Supports pole mounting and wall mounting for flexible installation in any outdoor space.
-
Weatherproof and Durable
- Built to withstand the harshest environments with IP67 weatherproof protection and lightning resistance, ensuring reliable performance in all conditions.
Summary
The TP-Link Festa F65-Outdoor AX3000 Outdoor WiFi 6 Access Point offers high-speed, wide-range wireless connectivity for outdoor environments. With 3.0 Gbps WiFi 6 speeds, smart antennas, mesh networking, and cloud-based centralized management, the F65-Outdoor is ideal for venues, gardens, pool decks, and large outdoor facilities. Its IP67-rated weatherproof enclosure and PoE+ support make it a robust and flexible solution for seamless, high-performance outdoor networking.
Mga detalye
TP-Link Festa F65-Outdoor AX3000 Outdoor WiFi 6 Access Point Specifications
| HARDWARE FEATURES | |
|---|---|

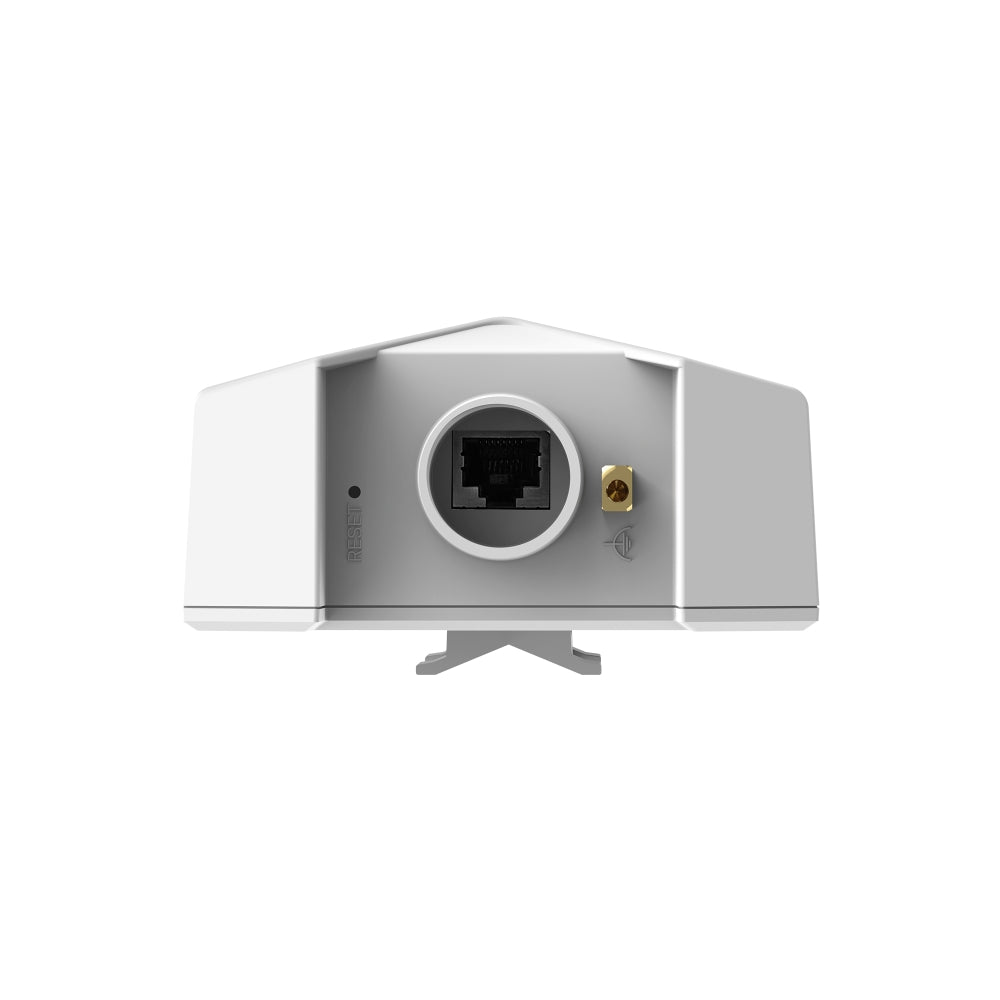

| Interface | 1x Gigabit Ethernet Port |
| Button | Reset |
| Power Supply | 802.3at PoE, 48V Passive PoE (PoE Adapter included) |
| Power Consumption | EU: 12.5W (802.3at PoE or Passive PoE), US: 14.7W (802.3at PoE or Passive PoE) |
| Weight | 780g |
| Dimensions (W x D x H) | 11.0 × 4.2 × 2.5 in (280.4 × 160.5 × 63.5 mm) |
| Antenna Type | 2 Internal Dual-Band Omni Antennas (2.4 GHz: 4 dBi, 5 GHz: 5 dBi) |
| Weatherproof Enclosure | IP67 |
| Mounting | Pole/Wall Mounting (Kits included) |
| WIRELESS FEATURES | |
| Concurrent Clients | 250+ |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | 5 GHz: 2402 Mbps, 2.4 GHz: 574 Mbps |
| Wireless Functions | Mesh, Seamless Roaming, Beamforming, MU-MIMO (2x2 DL/UL), Automatic Channel Selection, OFDMA (UL/DL), Band Steering, Load Balance, Airtime Fairness, RADIUS Accounting, Wireless Schedule, Wireless Statistics, Static IP/Dynamic IP, Rate Limit (SSID/Client), Multiple SSIDs (16: 8 on each band), Enable/Disable Wireless Radio, Enable/Disable SSID Broadcast, Guest Network, Transmit Power Control (Adjust on dBm), QoS (WMM) |
| Wireless Security | Captive Portal Authentication, Access Control, Max MAC Filter: 4,000, Wireless Isolation Between Clients, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, 802.1X Support, VLAN |
| Transmission Power | CE: <20 dBm(2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP), FCC: <25 dBm (2.4 GHz), <25 dBm (5 GHz) |
| MANAGEMENT | |
| NTP | Yes |
| Centralized Management | Yes |
| APP Support | Festa App |
| Cloud Access | Free Cloud |
| LED ON/OFF Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Zero-Touch Provisioning | Yes |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | Festa F65-Outdoor, Passive PoE Adapter, Power Cord, Mounting Kit, Waterproof Kit, Installation Guide |
| Environment | Operating Temperature: -30 °C to 70 °C (-22 °F to 158 °F), Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F), Operating Humidity: 10% to 90% RH non-condensing, Storage Humidity: 5% to 90% RH non-condensing |
