Ubiquiti UVC-AI-LPR 3X Zoom 4K 8MP Long-Range IR Bullet IP Camera
Paglalarawan
Precision License Plate Recognition with Ubiquiti UVC-AI-LPR
The Ubiquiti UVC-AI-LPR is a high-performance 4K bullet IP camera designed for accurate long-range license plate recognition (LPR). With a 3x optical zoom, advanced AI capabilities, and powerful IR night vision, it delivers exceptional performance for monitoring vehicles traveling at speeds up to 90 km/h. Its weatherproof design ensures reliable operation in outdoor environments.
Highlights
- 4K Ultra HD Resolution: Captures detailed 8MP video for clear LPR results.
- 3x Optical Zoom: Enables precise focus for long-distance license plate detection.
- Long-Range IR Night Vision: Optimized for LPR with up to 15 m (50 ft) capture distance.
- Advanced LPR AI: Recognizes license plates on vehicles moving up to 90 km/h.
- Dual-Lane Coverage: Monitor up to two lanes of traffic simultaneously.
- Integrated Audio: Records audio with built-in microphones (can be disabled).
- Weatherproof: Rugged outdoor design ensures performance in all conditions.
Key Features
Exceptional LPR Performance
- Optimized for Night-Time License Plate Detection: Captures reflective and non-reflective plates with high accuracy in low-light conditions.
- 3x Optical Zoom: Provides detailed, focused images for long-range detection.
- Wide Traffic Coverage: Monitors up to two lanes for comprehensive vehicle surveillance.
Robust Design for All Conditions
- Weatherproof: Built for outdoor use with a durable enclosure to withstand harsh environments.
- Integrated Microphone: Enables audio recording for additional situational awareness (speaker not included).
Reliable Connectivity and Power
- Gigabit Ethernet: Ensures fast and reliable data transmission.
- PoE+ Powered: Supports up to 25.5W power consumption for simple, single-cable installation.
Technical Specifications
| Category | Details |
|---|---|
| Video Resolution | 8MP 3840 Ã 2160 (16:9) |
| Zoom | 3x Optical Zoom |
| Night Vision | 15 m (50 ft) IR capture distance |
| LPR Speed Support | Up to 90 km/h |
| Power Input | PoE+ |
| Power Consumption | 25.5W |
| Supported Voltage | 42.5â57V DC |
| Networking Interface | GbE RJ45 port |
| Audio | Integrated microphone (can be disabled) |
| Weatherproof | Yes |
Summary
The Ubiquiti UVC-AI-LPR is purpose-built for long-range license plate recognition, offering 4K resolution, 3x optical zoom, and advanced AI capabilities. Its optimized IR night vision ensures accurate detection in low-light conditions, while its rugged weatherproof design makes it a dependable solution for outdoor traffic monitoring. Ideal for high-traffic areas, this camera ensures precise and efficient LPR performance for improved security and surveillance.
Mga detalye
Ubiquiti UVC-AI-LPR 3X Zoom 4K 8MP Long-Range IR Bullet IP Camera
| Specifications | Details |
|---|---|
| Mechanical | |
| Dimensions | 130 x 151.4 x 302.9 mm (5.1 x 6 x 11.9") |
| Weight | 1.5 kg (3.3 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Weatherproofing | IP66 |
| Resistance | IK04 |

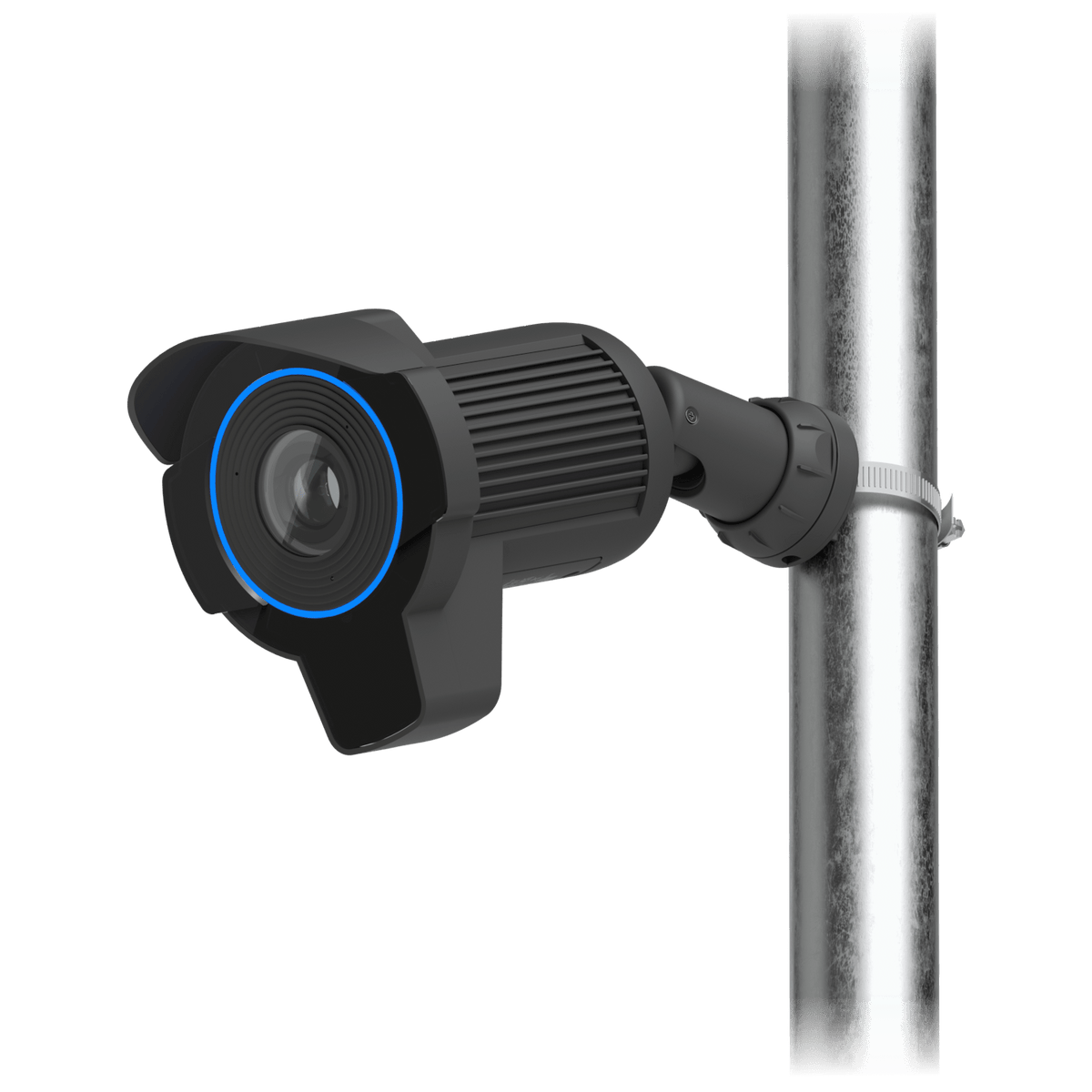

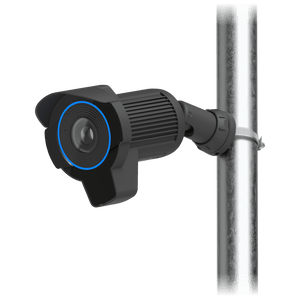

| Pole Mount Diameter | 38â50 mm (1.5â2") on pipe outer diameter (Metal strap torque: 6Nm) |
| Cable Jacket Enclosure Dimensions | Ã20 x 70.6 mm (0.8 x 2.8") |
| Cable Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Cable Length | 30 cm (1 ft) |
| Cable Diameter | 4.5 mm (0.2") |
| Cable Jacket Material | Thermoplastic elastomer |
| Cable Connector Type | RJ45 |
| Optics | |
| Sensor | 1/1.8" 8MP |
| Lens | F 4.1â12.3 mm; Æ/1.53âÆ/3.3 |
| View Angle | Wide: H 109.9°, V 60°, D 127.7° Tele: H 35°, V 19.8°, D 40° |
| LPR Night Mode | LPR optimization filter |
| IR Capture Distance | 15 m (50 ft) |
| Video | |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Max. Frame Rate | 30 FPS |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Quad-core ArmÂŽ CortexÂŽ-A53 based chip |
| Networking Interface | GbE RJ45 port |
| Max. Power Consumption | 25.5W |
| Power Method | PoE+ |
| Supported Voltage Range | 42.5â57V DC |
| LED | R/G/B/W |
| Button | Factory reset |
| Expansion Slot | Micro SD memory card (Requires at least 64 GB of storage) |
| Mounting | Wall, pole |
| Environmental | |
| Operating Temperature | -20 to 50° C (-4 to 122° F) |
| Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
| Speaker | No |
