TP-Link Tapo C520WS 4MP 2K QHD WiFi Outdoor 360º Pan Tilt IP Camera
Elevate Outdoor Security with Advanced 2K QHD and AI Features The TP-Link Tapo C520WS Outdoor Pan/Tilt Security Wi-Fi Camera is a cutting-edge surveillance solution, designed...
Description
Elevate Outdoor Security with Advanced 2K QHD and AI Features
The TP-Link Tapo C520WS Outdoor Pan/Tilt Security Wi-Fi Camera is a cutting-edge surveillance solution, designed to provide comprehensive and intelligent monitoring for outdoor spaces. With its superior 2K QHD resolution and starlight color night vision, this camera ensures detailed and vibrant coverage in various lighting conditions.
Highlights
2K QHD Live View
- Offers a high-resolution 2560 × 1440 view, delivering 1.7 times more pixels than 1080p for sharper, clearer images.
Starlight Color Night Vision
- Features an F1.6 large-aperture lens and starlight sensor for brighter, more colorful images in low-light conditions compared to standard full-color night vision cameras.

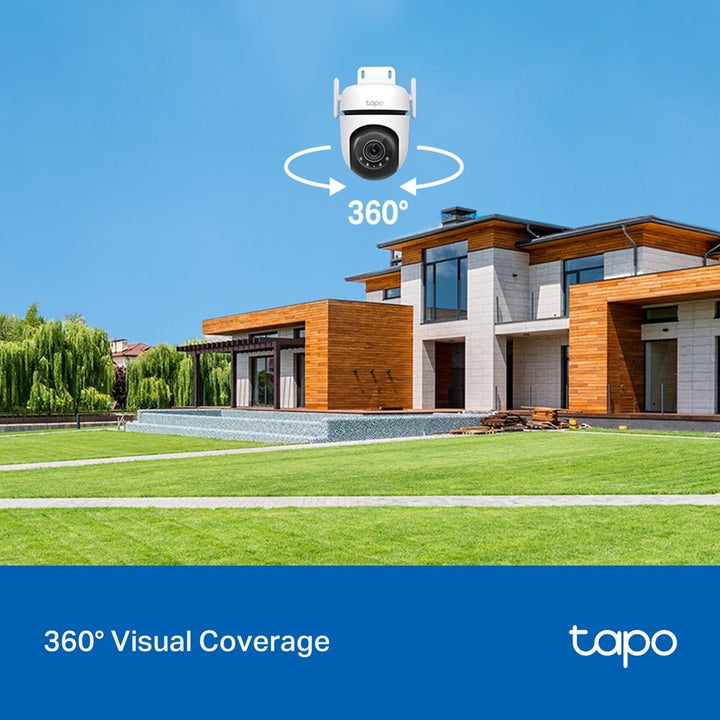

360° Horizontal and 130° Vertical Coverage
- Provides complete panoramic surveillance, eliminating blind spots in your outdoor monitoring.

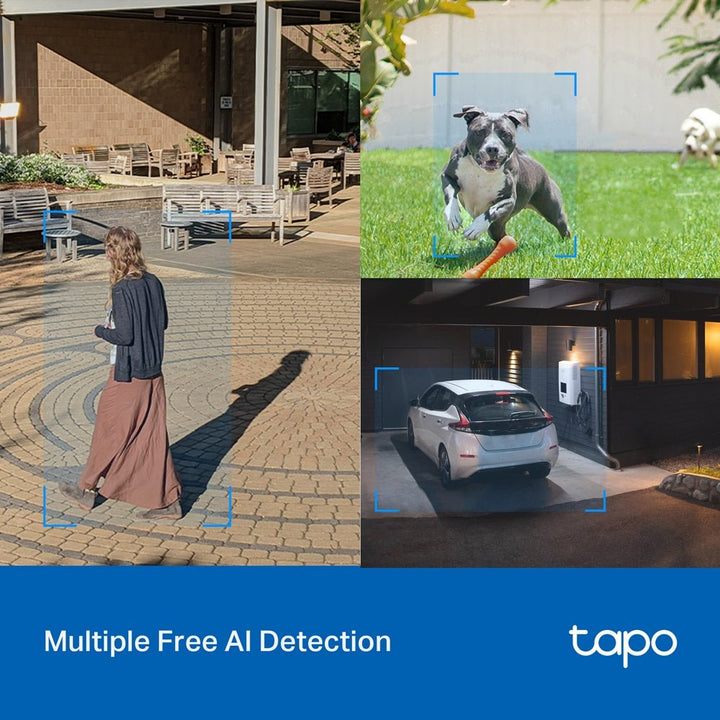

Enhanced AI Detection
- Smart AI technology identifies people, pets, and vehicles, providing targeted and relevant notifications.

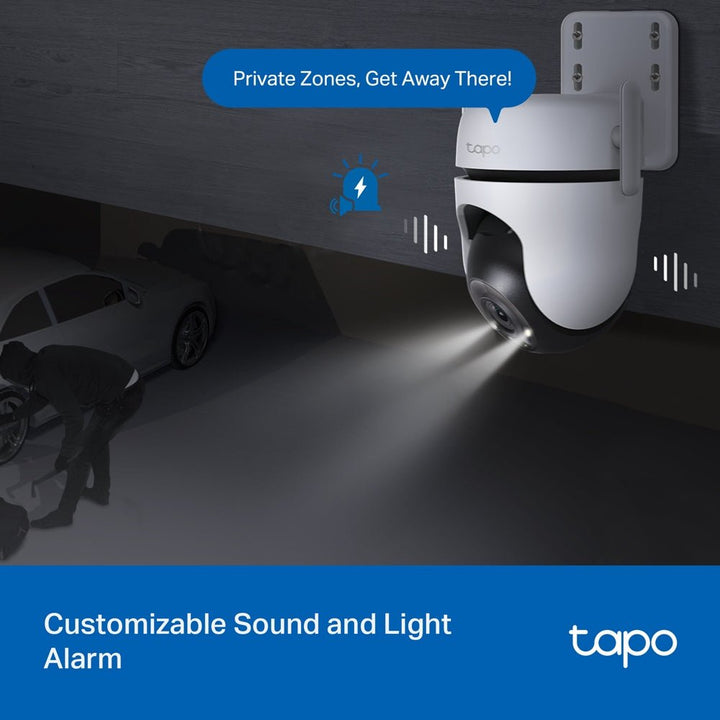

Customizable Sound and Light Alarm
- Allows recording of personalized audio messages for alarms and includes an ultra-bright, adjustable light to deter unwanted visitors.
Flexible Local and Cloud Storage
- Supports saving videos to a microSD card (up to 512 GB) or using Tapo Care cloud services for additional storage options.

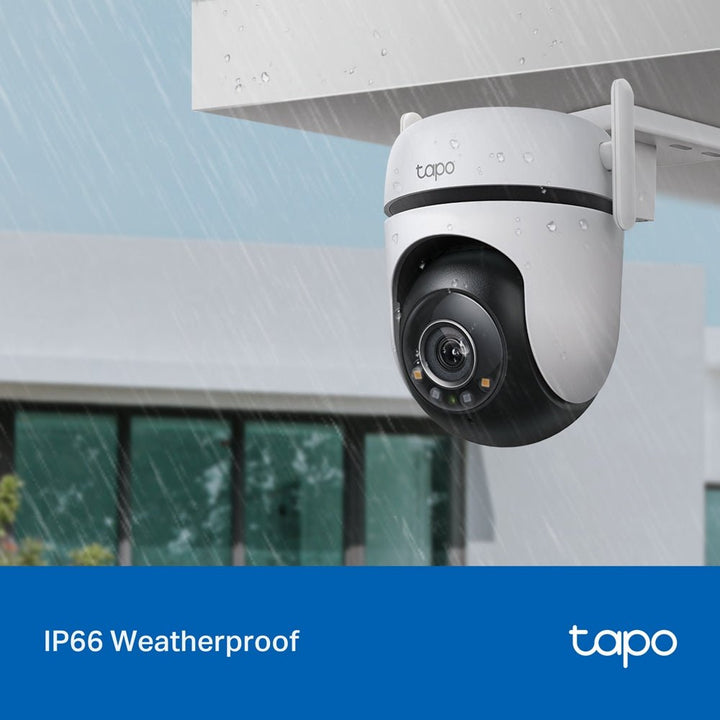

IP66 Weatherproof
- Ensures reliable performance in outdoor weather conditions, offering excellent waterproof and dustproof capabilities.
Wired/Wireless Networking
- Offers dual networking options through WiFi or Ethernet for flexible installation.
Smart Motion Tracking
- Tracks motion with high-speed rotation, keeping important areas within view for continuous monitoring.
Customizable Detection Settings
- Adjust motion detection sensitivity and set up activity zones or boundaries for tailored security alerts.
Reliable Networking with Flexible Connection
- Dual powerful external antennas provide extensive wireless coverage and stable connection, with the option for wired networking through an RJ45 Ethernet port.
Two-Way Audio Communication
- Enables direct communication with visitors or intruders through a built-in microphone and speaker.
Physical Privacy Mode
- Provides a privacy option by physically blocking the camera's lens when not in use.
Voice Control Compatibility
- Integrates with Google Assistant and Amazon Alexa for hands-free operation.
Dedicated Tapo App
- Offers live view, playback, clip saving, and easy setup, all within a user-friendly app interface.
Summary
The TP-Link Tapo C520WS Outdoor Pan/Tilt Security Wi-Fi Camera is an ideal choice for those seeking a sophisticated and versatile outdoor security solution. Its combination of 2K QHD resolution, starlight color night vision, AI-driven detection, and comprehensive coverage makes it a robust tool for enhancing the security of outdoor spaces. Whether monitoring for safety, deterring potential threats, or staying connected with your property, the Tapo C520WS offers peace of mind with its advanced technology and user-friendly functionality.
Specs
| Specification | Detail |
|---|---|
| CAMERA | |
| Image Sensor | 1/3‘’ CMOS |
| Lens | F/NO: 1.61±10%; Focal Length: 3.18mm±5% |
| Motion Range | Pan Mechanical Range: 340° (360° Pan Coverage), Tilt Mechanical Range: 60° (130° Tilt Coverage) |
| Night Vision | 850 nm IR LED (up to 98 ft), Starlight Color Night Vision |
| Lighting | 2× Built-in Spotlights |
| Interface & Button | 1× Ethernet Port, 1× RESET Button, 1× MicroSD Card Slot (Up to 512GB) |
| Weatherproof Rating | IP66 |
| View Range | 360° horizontal and 130° vertical |
| Resolution | 2K QHD 4MP (2560 × 1440 px) |
| VIDEO & AUDIO | |
| Maximum Resolution | 2K QHD 4MP (2560 × 1440 px) |
| Frame Rate | 15/20/25/30 fps (Default 15 fps) |
| Digital Zoom | 12x |
| Video Compression | H.264 |
| Live View | Yes |
| Image Enhancement | 3D DNR, WDR |
| Audio Input & Output | Built-in Microphone and Speaker |
| Audio Communication | Two-Way Audio with Noise Cancellation |
| Siren Volume | 93 dB (Level measured at 4-inch/10-cm distance) |
| STORAGE | |
| Local Storage | MicroSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage | Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION and NOTIFICATIONS | |
| AI Detection | Motion Detection, Person Detection, Pet Detection, Vehicle Detection, Line-Crossing Detection, Tamper Detection |
| Activity Zones | Yes |
| Output Notification | System Notification, System Notification with Snapshot (Tapo Care Services) |
| NETWORK | |
| Network Connectivity | Connect via Wi-Fi or Ethernet |
| Wireless Connectivity | IEEE 802.11b/g/n, 2.4 GHz Wi-Fi |
| Protocol | TCP/IP, ICMP, DNS, HTTPS, TCP, UDP |
| Ethernet Port | 1× 10/100 Mbps RJ45 Port on Camera |
| Wireless Security | WPA/WPA2-PSK |
| RTSP | Yes |
| ONVIF | Yes |
| Standards and Protocols | IEEE 802.11b/g/n |
| Security | 128 bit AES encryption with SSL/TLS |
| Frequency | 2.4GHz |
| POWER | |
| Power Source | 9V DC Power Adapter |
| Input Voltage | 100-240 V, 50/60 Hz |
| Output Voltage | 9 V, 0.85 A (DC Power) |
| GENERAL | |
| Smart Integration | Google Assistant, Amazon Alexa |
| Weather Resistance | IP66 |
| System Requirements | Tapo App: iOS 9.0 or higher, Android 4.4 or higher |
| Mounting Options | Ceiling-Mounted, Wall-Mounted, Pole-Mounted (Pole-Mounting loops required but not included) |
| Operating Temperature | -30℃~60℃ |
| Storage Temperature | -40℃~60℃ |
| Operating Humidity | 10%~90% RH, Non-condensing |
| Storage Humidity | 0~90% RH, Non-condensing |
| Dimensions | 4.9 × 4.8 × 3.5 in (123.8 × 123 × 90 mm) |
| Package Contents | Tapo C520WS Camera, Power Adapter, Mounting Anchors, Mounting Screw |
